Product Description

✨ Basic Information
Model NO.
BPY51-II
Input Voltage
AC 220V/AC 380
Power
1*9W, 1*18W, 2*9W, 2*18W, 36W
Color Temperature
2700-6500K
Certification
CCC, CE, RoHS, Iecex
Warranty
3-Year
Working Lifetime
50000 Hours
Characteristic
Waterproof, Dustproof, Corrosion-Resistant
Luminous Efficiency
120 Lm/W
Protection Degree
IP66
📊 Product Parameters
Parameters Header
Model Explosion Proof Sign Source Type Power (W) Flux (Lm) CCT (K) Weight (kg)
BPY- Ex db eb IIC T6 Gb
Ex tb IIIC T80ºC Db		 LED I 1x9 / 1x18 582 / 1156 3000~5700 2.5
II 2x9 / 2x18 1165 / 2312 6
Rated Voltage Inlet Thread Cable Outer Dia. Charging Time Starting Time Emergency Time Protection Anti-Corrosion
220V/50Hz G3/4 Φ10~Φ14mm 24h ≤0.3s ≥90min IP66 WF2
📝 Product Description
  • Aluminum alloy die-casting shell with high-speed shot peening and high voltage electrostatic spraying for corrosion resistance.
  • Exposed stainless steel fasteners with superior anti-corrosion performance.
  • High strength tempered glass transparent tube with high light transmittance and reliable explosion-proof performance.
  • Grid-type protective screen made of galvanized carbon steel for double anti-corrosion.
  • Equipped with well-known brand fluorescent tubes for high efficiency and long service life.
  • Integrated wiring chamber and special terminal block for easy installation without additional junction boxes.
  • Modular plug-in design allows for easy maintenance and tube replacement by loosening the end cover.
  • Maintenance-free energy-saving LED tubes with wide voltage range and high efficiency.
  • Optional emergency devices that automatically switch during power outages.
  • Compatible with steel pipe or cable wiring.

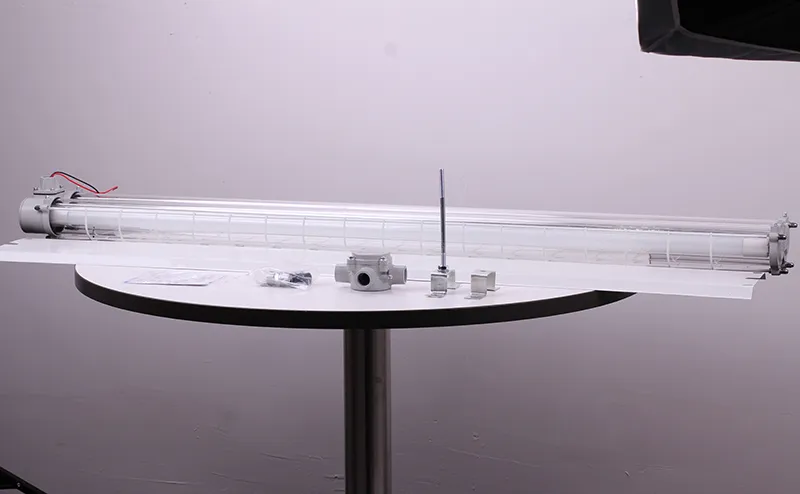

Product View 1

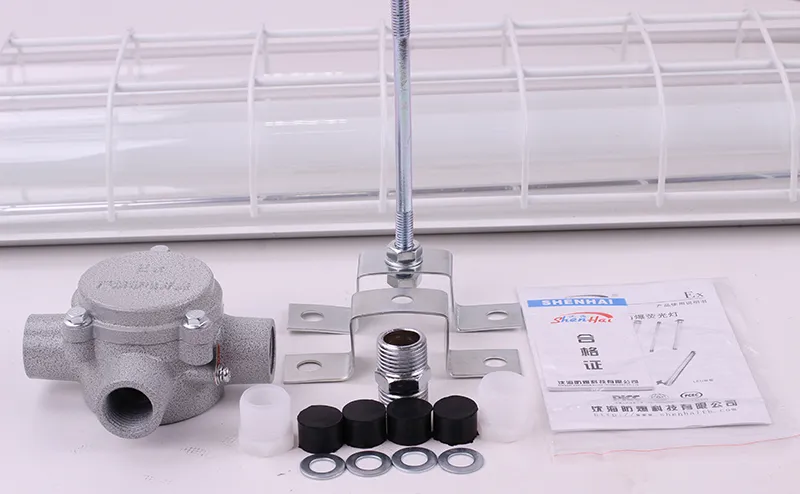

Product View 2

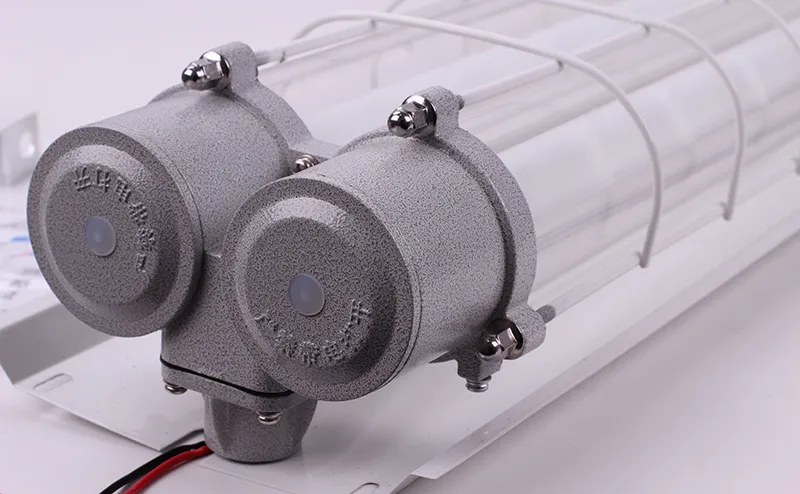

Product View 3

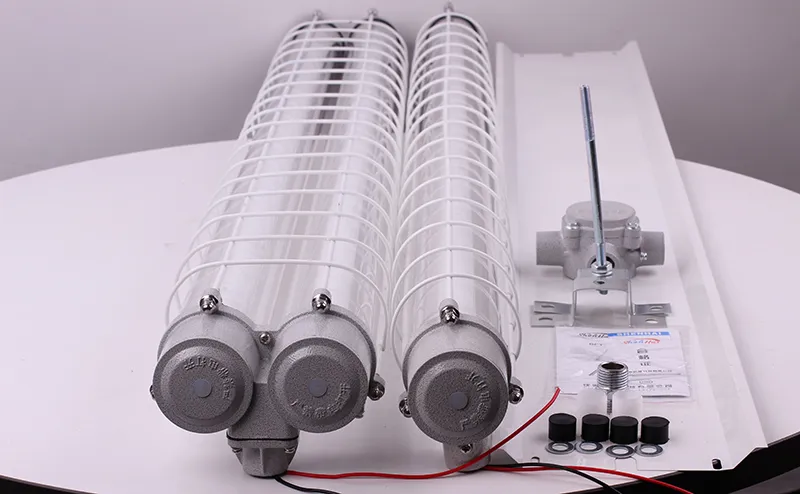

Product View 4

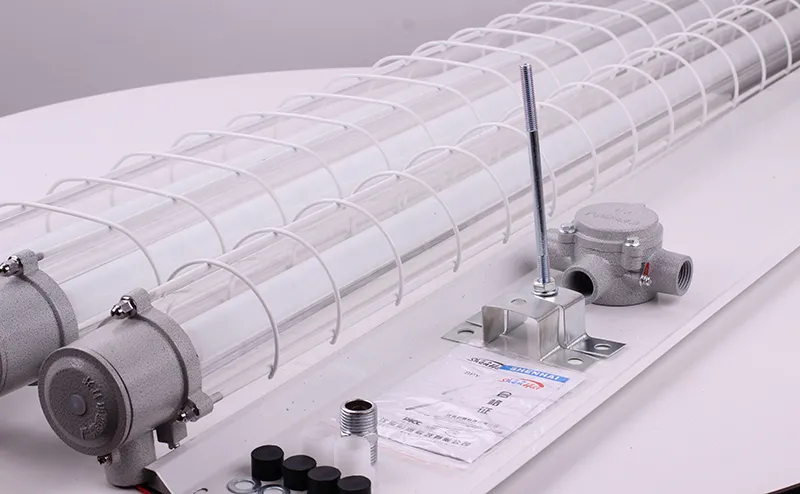

Product View 5
Product View 6

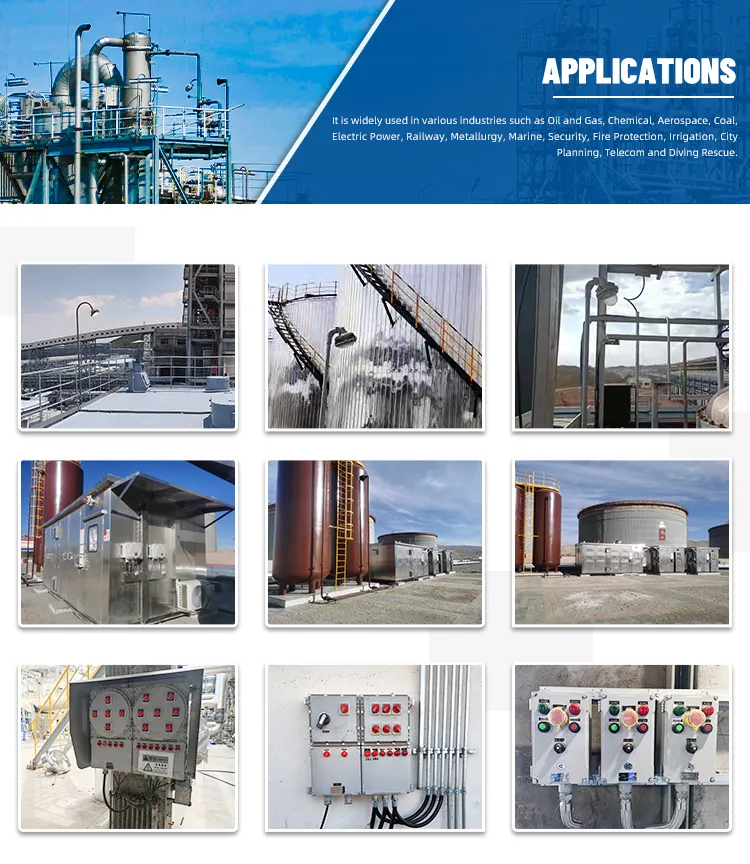

🌐 Application Scope
  • Explosive gas environments: Zone 1 and Zone 2.
  • Combustible dust environments: Zone 21 and Zone 22.
  • Gas groups: IIA, IIB, and IIC.
  • Temperature groups: T1 to T6.
  • Ideal for petroleum exploitation, refining, chemical industries, gas stations, and hazardous locations.
Application Dimensions
🏭 Manufacturing & Quality
Factory 1
Factory 2
Factory 3
Certificates
❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in explosion-proof lighting and electrical equipment, providing full OEM services.
What certifications do your products hold?
Our products have passed ATEX and IECEx international certifications, along with multiple national patents for safety and design.
In which industries can these lights be used?
They are widely used in petroleum, chemical, aerospace, coal power, shipbuilding, marine, and gas stations among other hazardous industries.
Can I request a sample order?
Yes, we welcome sample orders to test and verify the quality. Mixed samples are also acceptable.
Do you accept customized designs?
Yes, we can provide customized solutions based on your specific requirements and design confirmations.
What is the typical emergency lighting duration?
For models equipped with emergency devices, the lighting duration is ≥90 minutes after a power failure.
