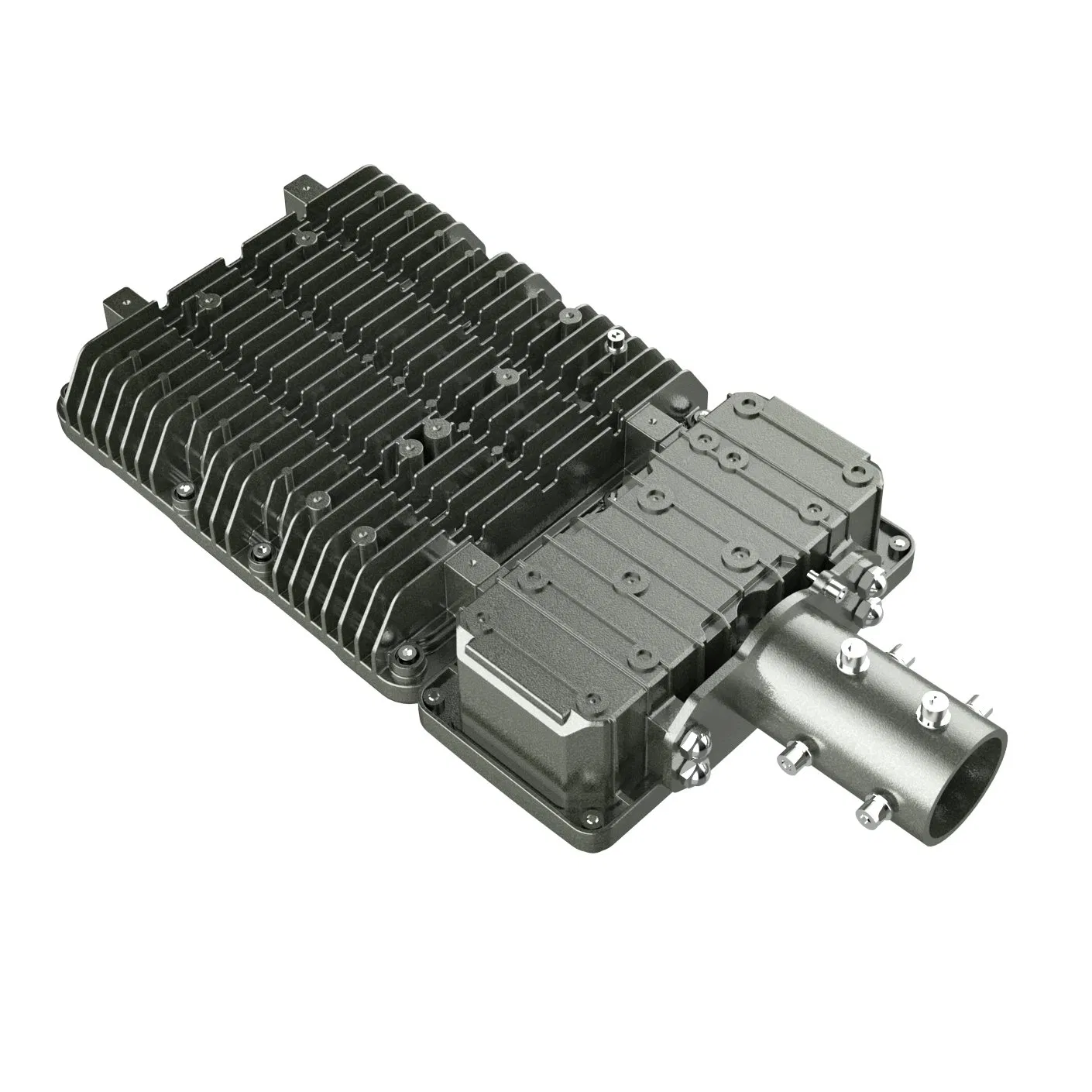

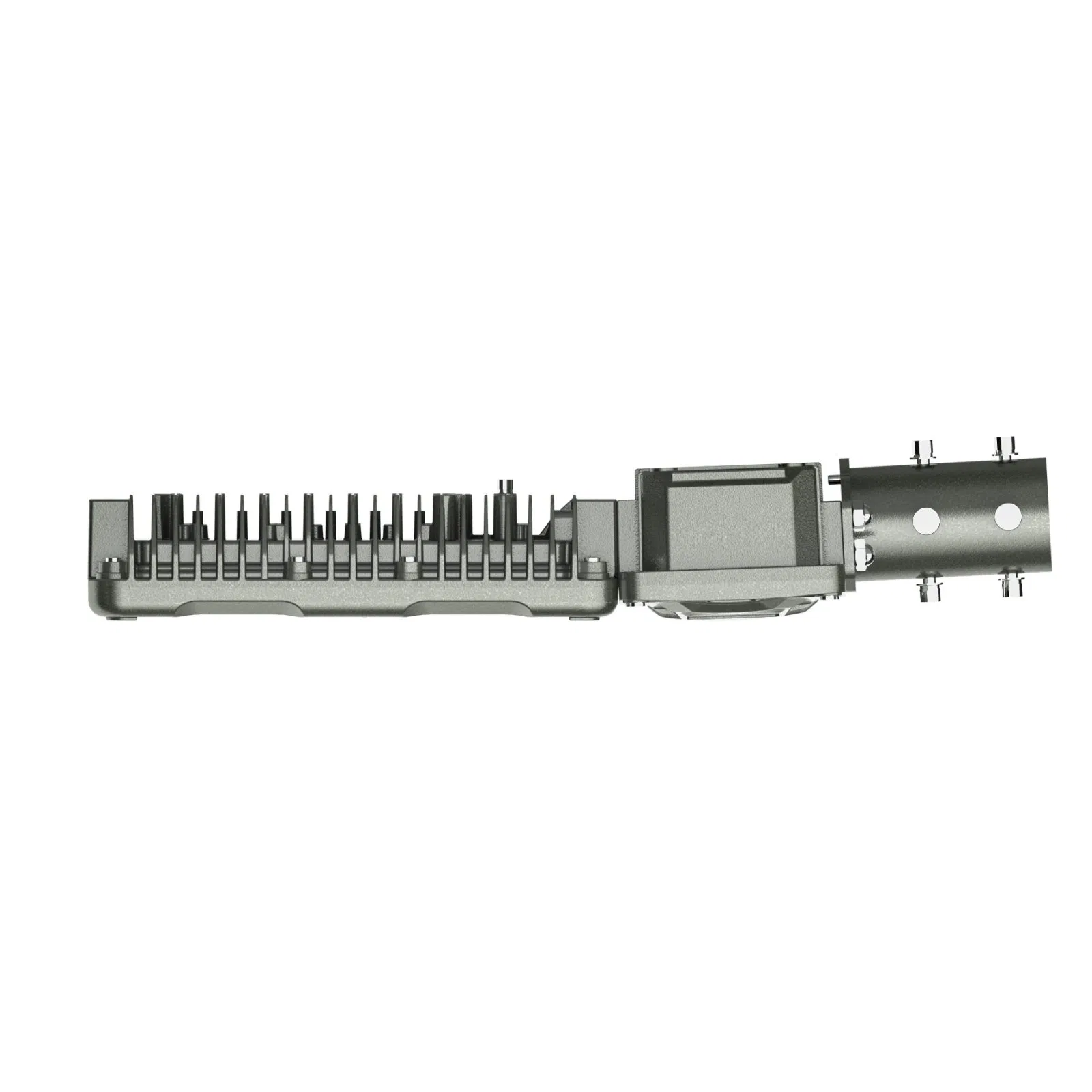

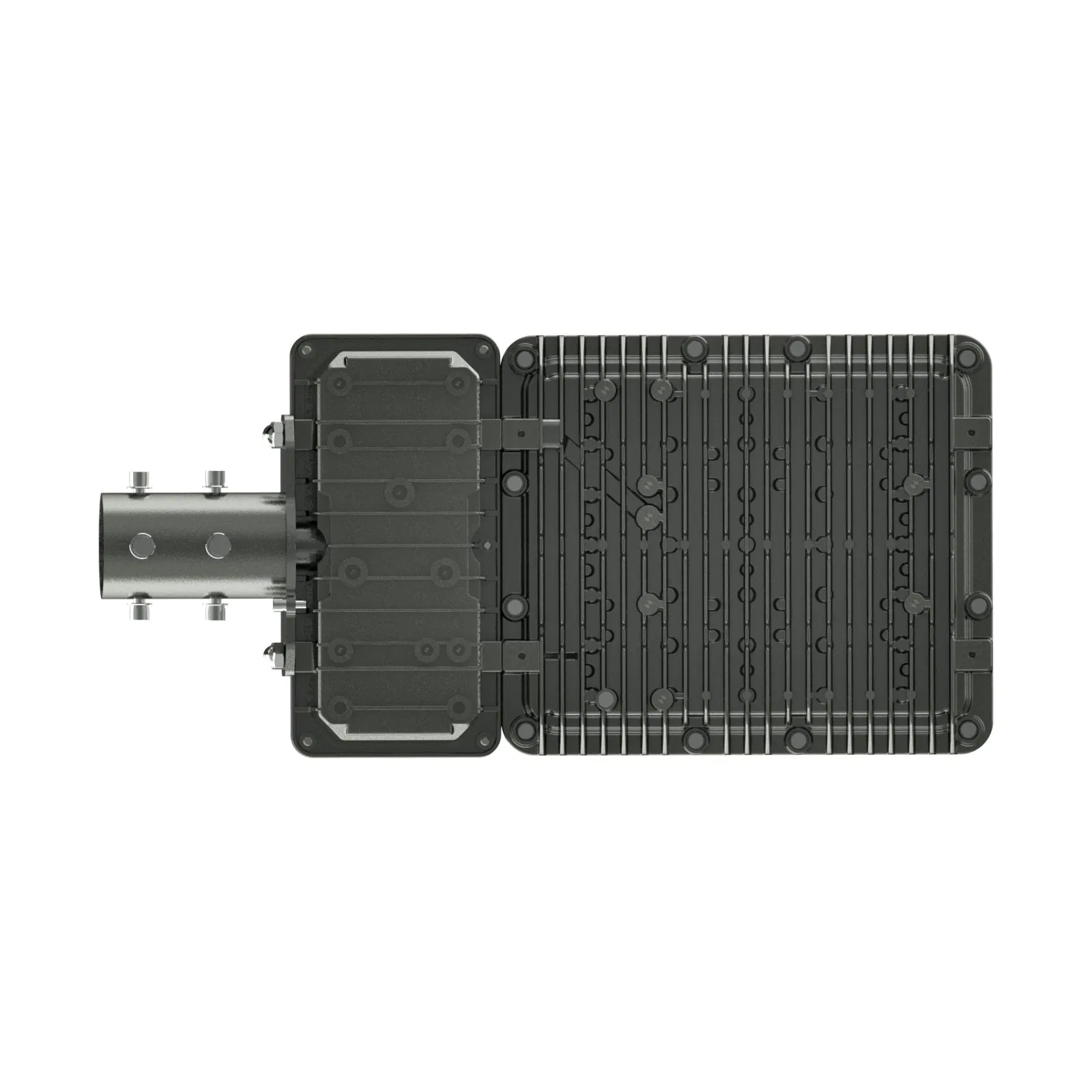

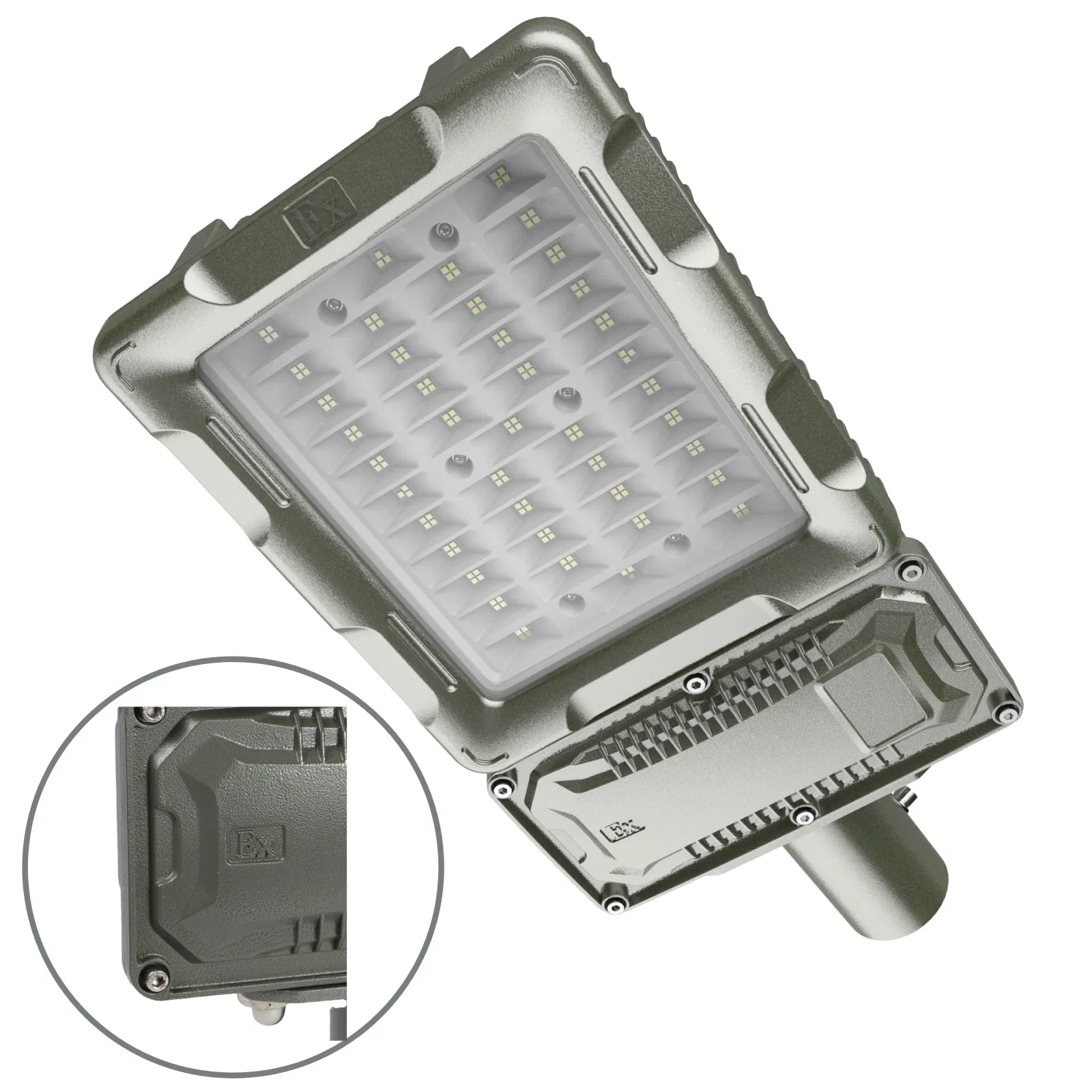

High-Efficiency Tri-Proof Explosion Proof LED Street Lamp Road Lighting for Industrial Plant

Basic Specifications

Model NO.MXEL-8260

Base TypeLED

Irradiated Area≥30m²

Input Voltage220v

Power Range80-200W

Color TempCool White

Emitting ColorWhite

LED Chips BrandCREE3030

CertificationsCE, RoHS, ATEX, ISO9001

Light Effect120lm/W

Frequency50/60Hz

Weight10.5kg

Dimensions276×590×95mm

Lifespan100,000 Hours

Production Cap3000 PCS/Month

Packaging & Delivery

Package Size60.00cm * 30.00cm * 18.00cm

Gross Weight14.000kg

Transport PackageCarton

Product Description

High-Efficiency Tri-Proof Explosion Proof LED Street Lamp Road Lighting for Industrial Plant

Model	Wattage	Lumen Output	Voltage Options	Color Temp (CCT)
MXEL-8260	90W	10800lm	AC24V / 110V / 220V DC12V / 24V	3000K / 4000K 5000K / 6500K
	100W	12000lm
	120W	14400lm
	140W	16800lm
	150W	18000lm
	180W	21600lm
Customization	Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, and shell color. Compatible with Digital Smart Systems (DALI, DMX, 0-10V).

Common Technical Data
Luminous Efficiency	120 Lm/W	Power Factor	>0.95
Beam Angle	30°, 45°, 60°, 120°	Working Temp	-20ºC ~ 40ºC
ATEX Protection Level	Zone1 / Div1	Frequency	50/60Hz
CRI	≥70RA	LED Chip Type	CREE
Structure Material	Aluminum Alloy	LED Driver	Meanwell / Other Reliable Brands
IP Rating	IP66	IK Rating	IK10
Design Lifespan	100,000 Hrs	Anti-Corrosion	WF2
Ambient Temperature	-40ºC ~ +55ºC	Installation Methods	Bracket, ceiling, sitting, suction, inserted
LED Quantity	280 PCS	Warranty Term	3 / 5 Years

Key Features:

Prevent fire and explosion hazards

Maintain high worker safety standards

High lumen output & accurate CCT

No flickering, stable brightness

Meanwell driver for long lifespan

Easy structural installation

Mercury-free, environmentally safe

Fully CE compliant structure

Product Design & Details

Explosion-proof streetlights, also known as hazardous location luminaires, are specialized lighting fixtures designed to operate safely in environments where explosive gases, vapors, dust, or fibers may be present. These luminaires are engineered with robust materials and construction techniques to prevent ignition of hazardous substances, ensuring the safety of personnel and property.

01/

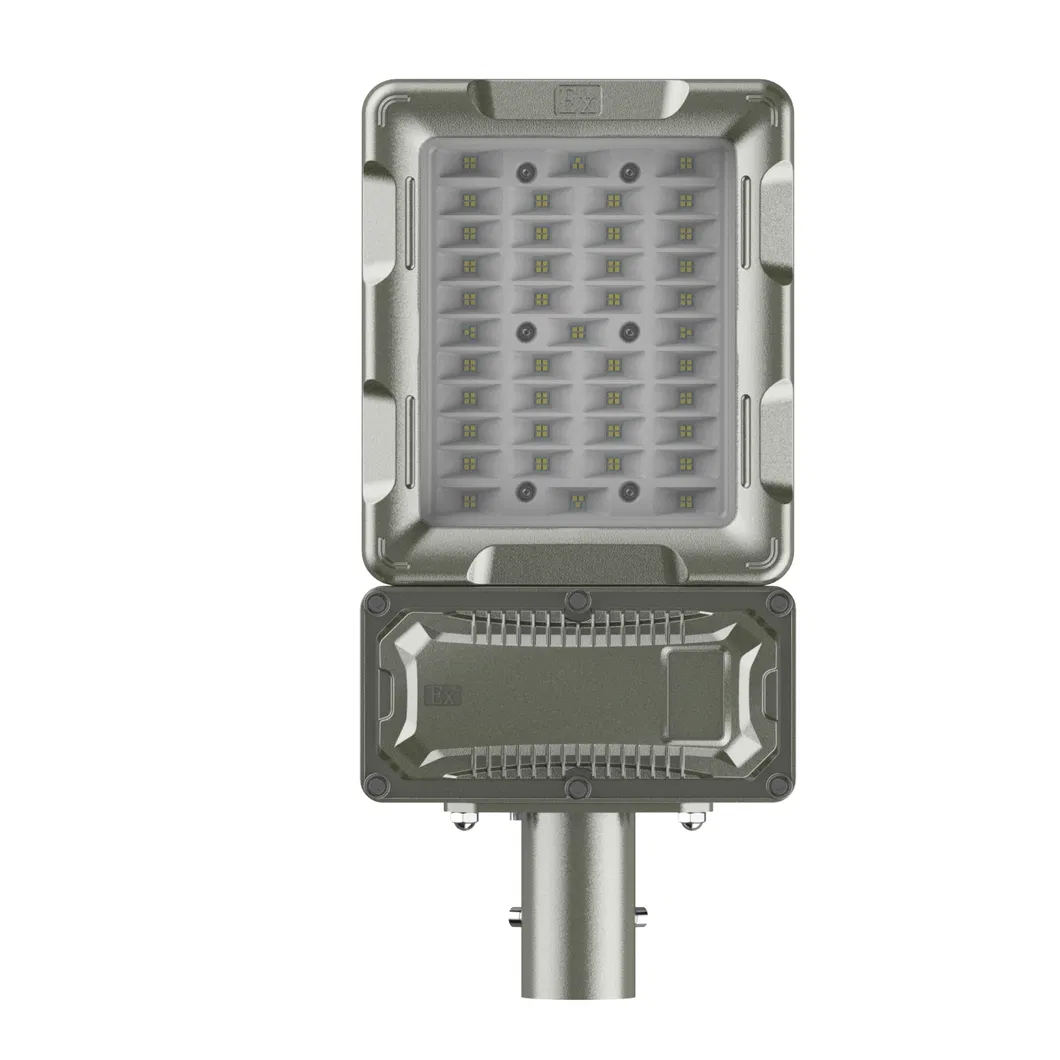

High Quality Chip & High Efficiency

Using branded LED light-emitting chips, high brightness, high light efficiency, chip light efficiency >120Lm/W. Stable performance, average chip service life is up to 100,000 hours. Using SMT array chip technology, it has high thermal conductivity and low light attenuation.

02/

Advanced Heat Dissipation

The whole lamp adopts an air diversion heat dissipation structure design. The radiator is made of special die-casting ADC12 alloy aluminum material and is integrally formed by high-pressure die-casting. It has high strength, fast heat conduction and strong heat dissipation. Incorporating 3.0 thermal conductivity silicone grease, heat conduction is accelerated.

03/

Excellent Weatherproofing

Features a specialized silicone sealing ring with anti-aging properties, high/low temperature resistance, and extreme sealing performance. Equipped with high-precision machining, the protection level reaches IP66. The surface is coated with high-voltage electrostatic spraying, and screw fasteners are stainless steel to provide strong acid/alkali resistance.

04/

Safety & Precision Engineering

Designed and manufactured in strict compliance with the explosion-proof standards, obtaining certified explosion-proof inspection reports. High-density aluminum alloy high-pressure die-casting ensures durability, extreme impact resistance, and long-term protection.

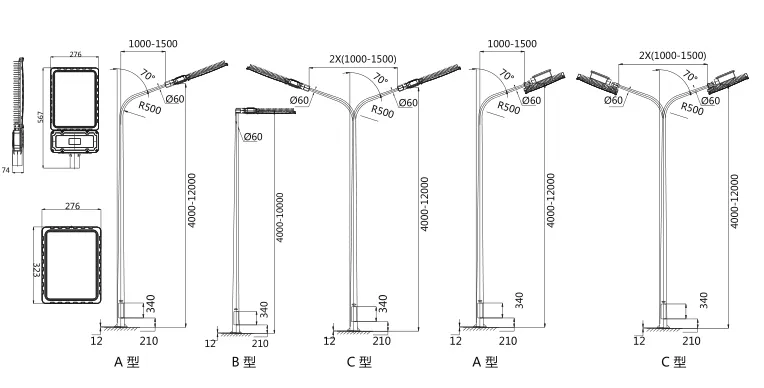

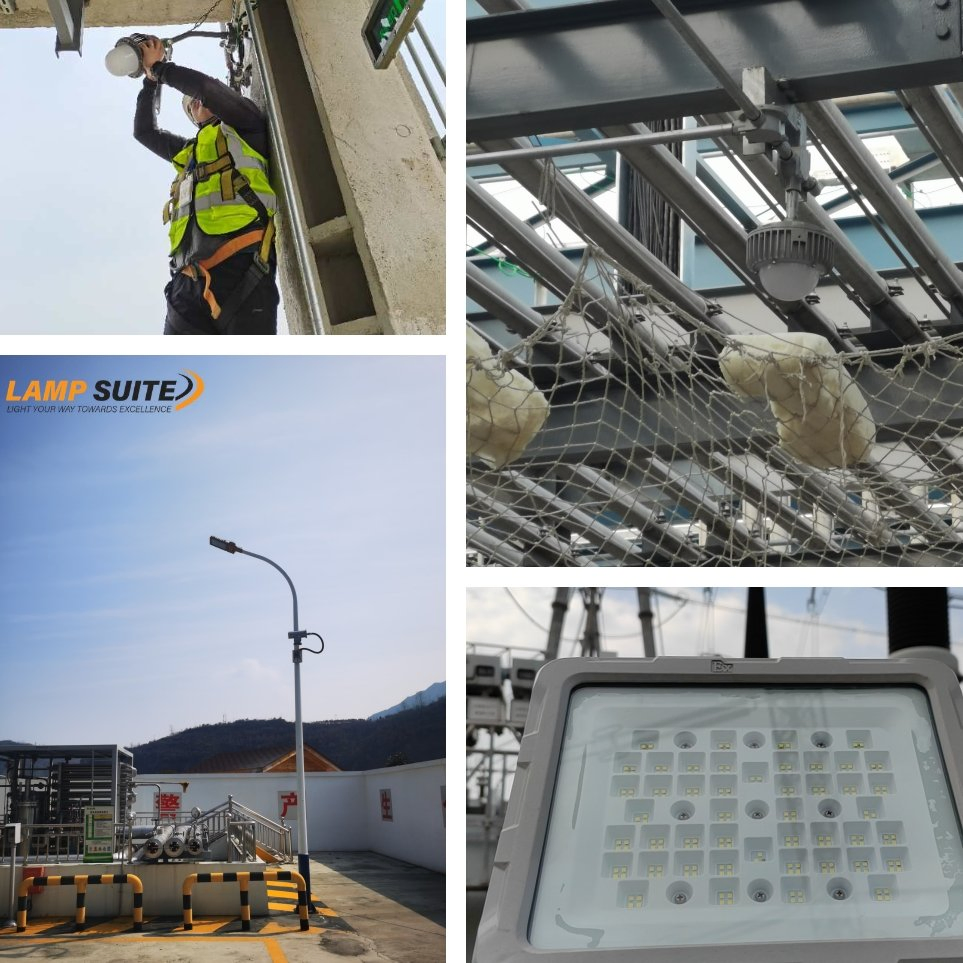

Installation Instructions

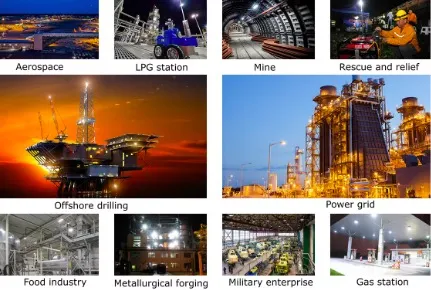

Hazardous Location Applications

Optimal environments include:

Gas Stations

Industrial Factories

Dust Explosion Areas

Equipment Depots

Petroleum Pipelines

Chemical Plants

Offshore Oil Platforms

Warehouses

Tunnels

Marine Environments

Explosive Workshops

Packaging & Shipping

Frequently Asked Questions

What is the primary application of the MXEL-8260 explosion-proof light?

The light is specifically designed for high-risk, hazardous locations such as gas stations, heavy industries, dust explosion areas, oil platforms, pipeline routes, and chemical storage areas where explosive safety standards are strictly required.

How are the quality and safety specifications guaranteed?

These fixtures are certified under international standards including ATEX, CE, RoHS, and manufactured under ISO9001 quality guidelines. They offer IP66 waterproofing, IK10 impact protection, and feature robust WF2 anti-corrosion properties.

Are testing samples available before placing bulk orders?

Yes, product samples can be ordered for validation and compatibility checks. Custom specifications can also be prepared for single unit testing requests.

What kind of customization options can be requested?

We support customization options including custom wattage, specific driver brands, custom LED chips, optical distribution angles, CCT settings, dimming capabilities, and digital smart systems Integration (DALI, DMX, 0-10V).

What is the expected operating life and warranty period of this LED fixture?

The fixture is built using high-performance CREE LED chips and premium drivers, delivering an average operating life of up to 100,000 hours. The standard warranty options range from 3 to 5 years.

How does the integrated heat dissipation architecture work?

The housing uses an integrated air-diversion pattern cast in high-pressure ADC12 alloy aluminum. When coupled with 3.0 thermal-conductivity grease, it optimizes convective cooling to protect internal electronics.
