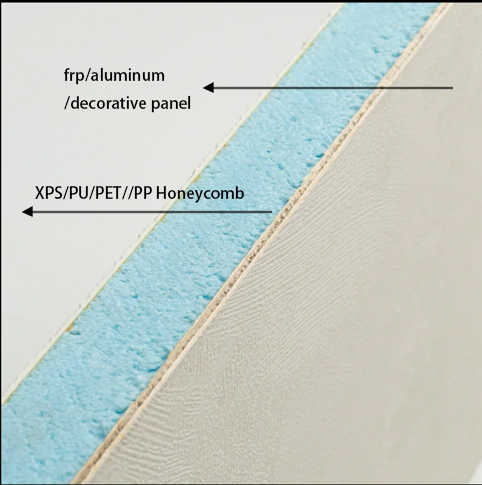

FRP composite panels are usually called sandwich panels. They are made of prefabricated fiberglass reinforced plastic sheets as surfaces and backside skin, XPS foam/PP Honeycomb/Polyurethane foam as core materials, and high-strength adhesive bonding together under high vacuum pressure. The gel coat FRP surface is friendly to food.
Item
Dimensions
Specification
RV composite panels
Length
Max 9000mm
Width
Max 2800mm
Thickness
Max 100mm
Refrigerated Truck panels
Length
Max 16500mm
Width
Max 3200mm
Thickness
Max 200mm
Dry cargo truck panels
Length
Max 16500mm
Width
Max 3200mm
Thickness
Max 100mm

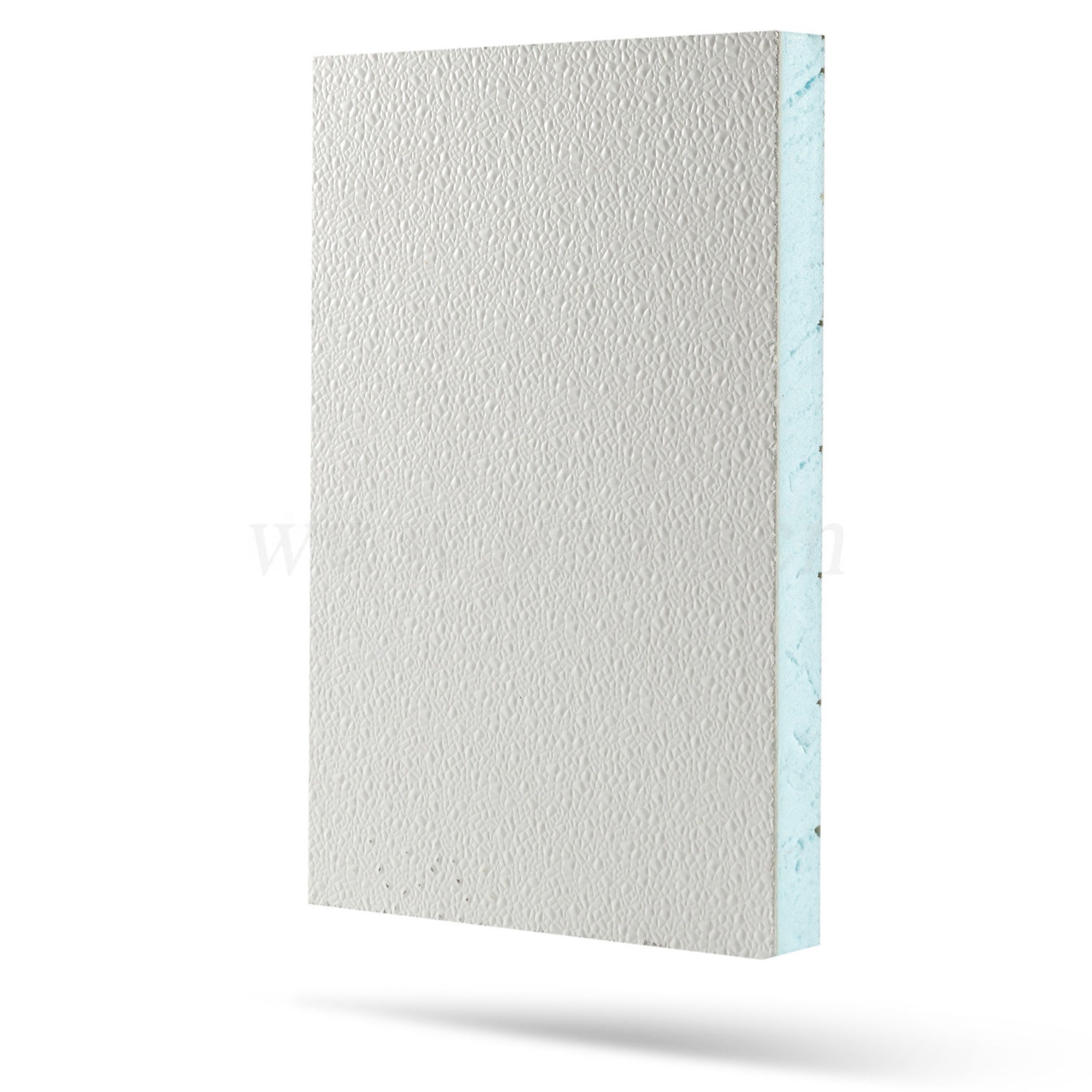

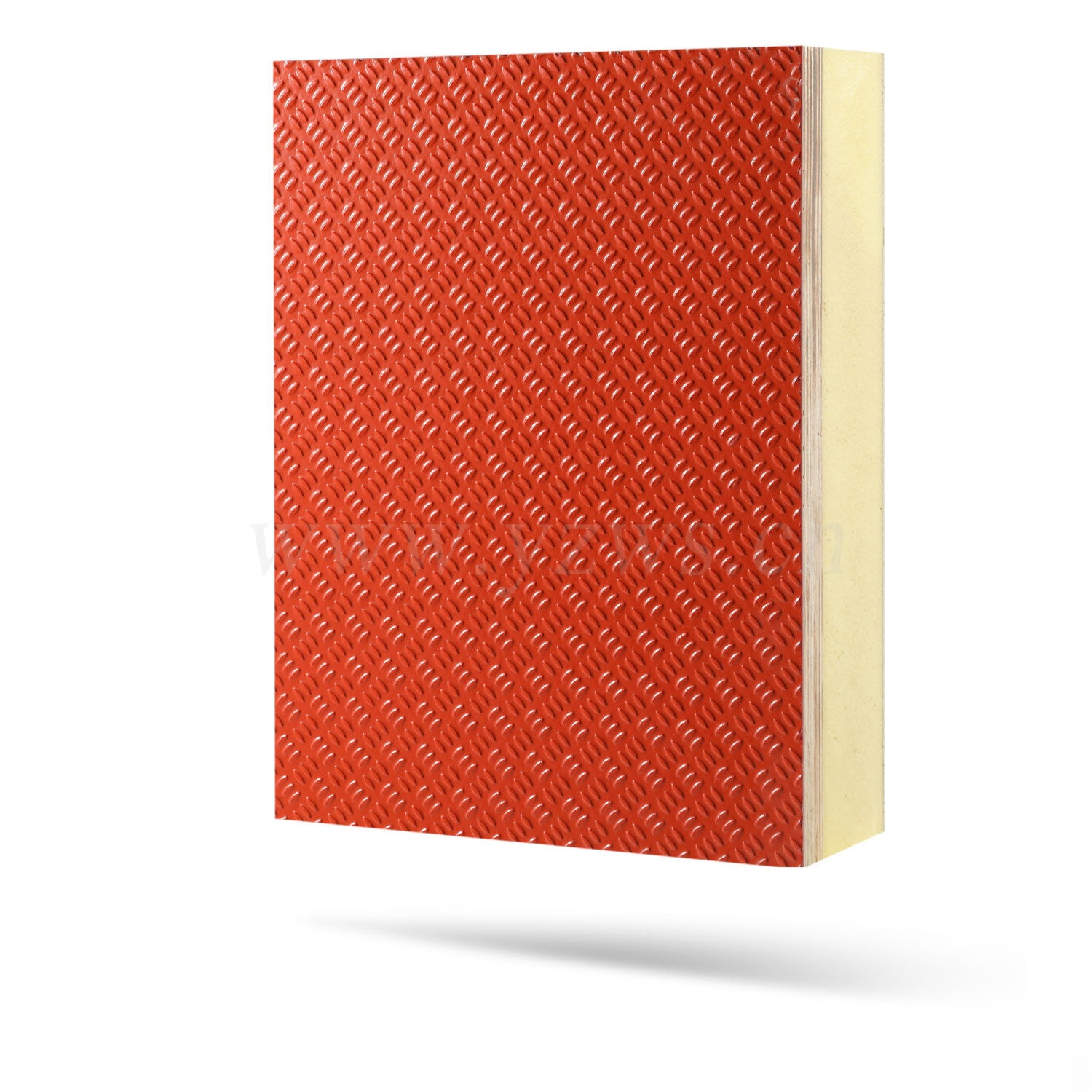

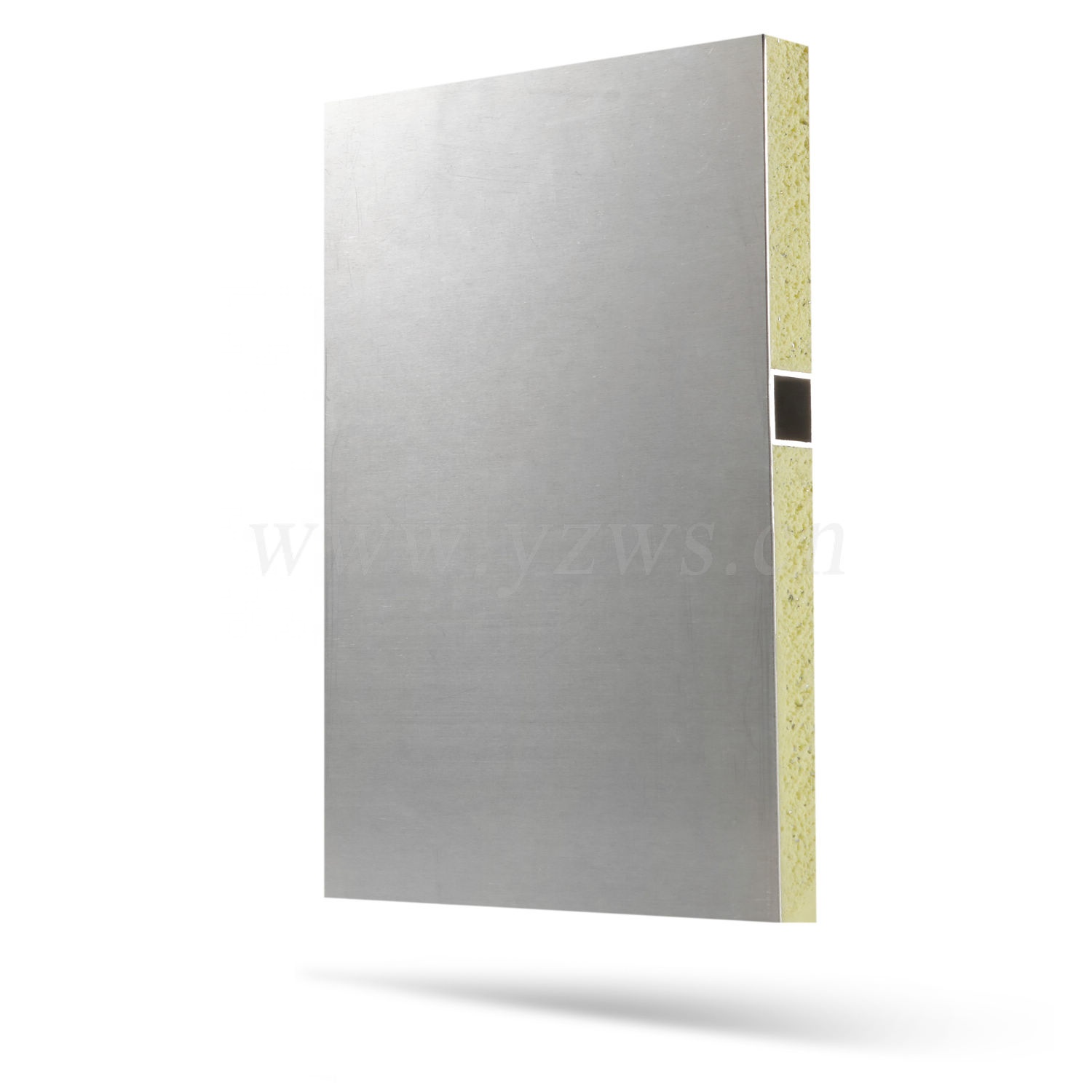

Advantage of FRP composite panels
Light weight
High impact resistance and strength
Corrosion resistance and chemical resistance
Smooth and glossy surface, easy to repair
UV and weather resistance, long time using
Good insulation

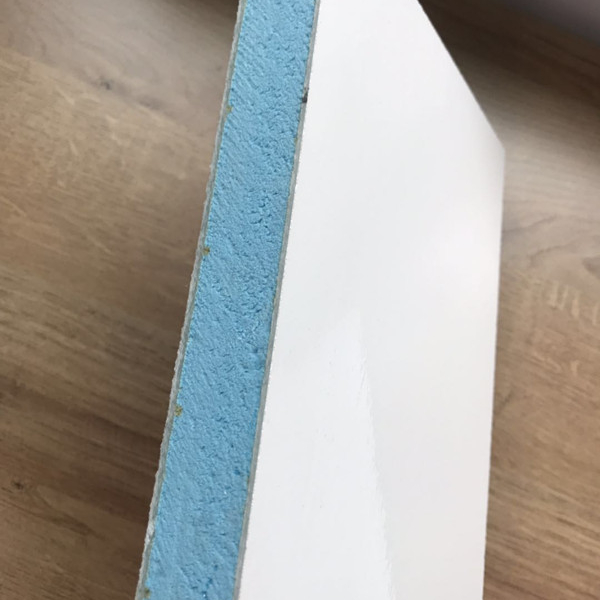

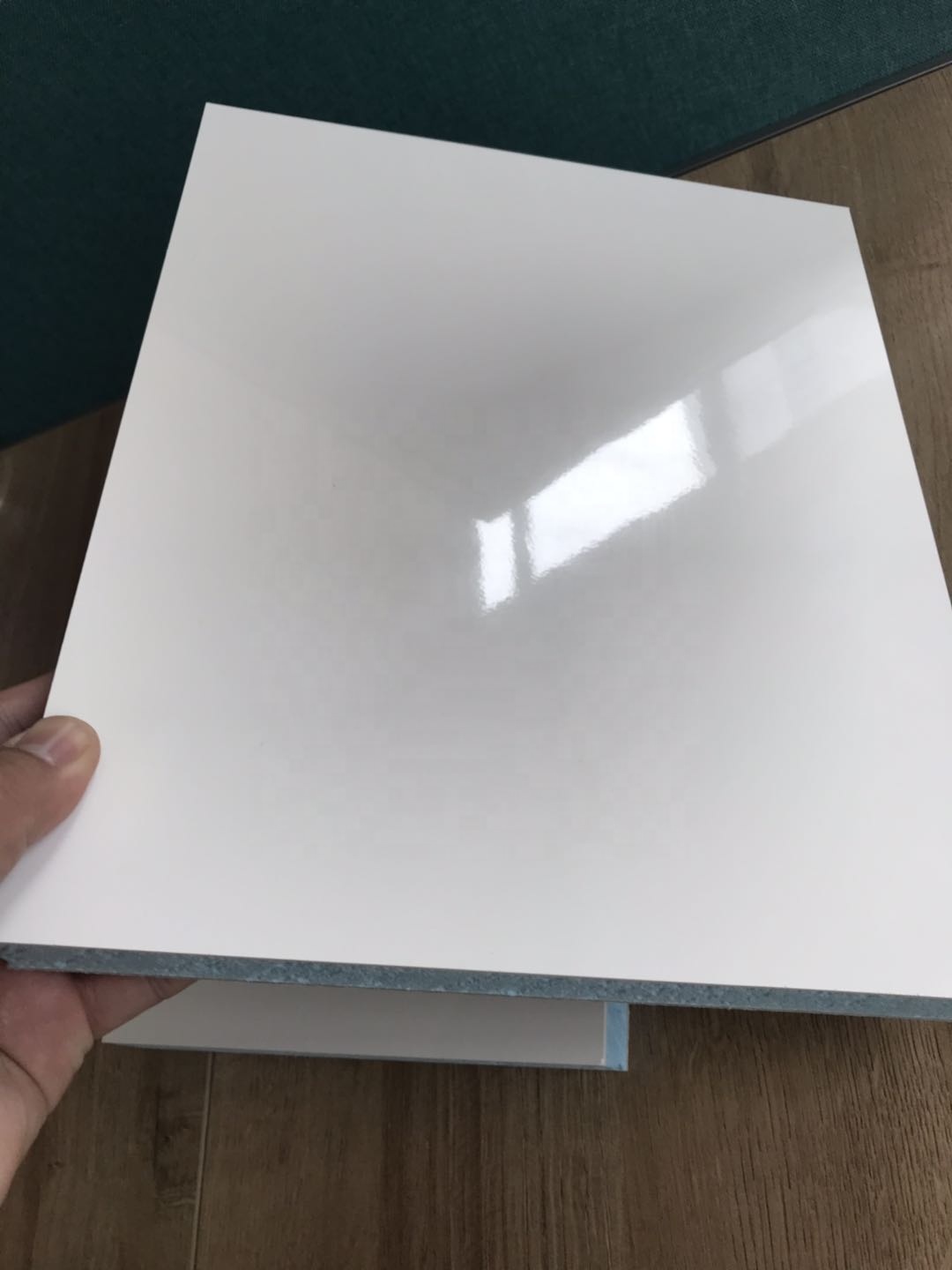

Product display
The composite panels has a smooth and beautiful appearance and good load-bearing, impact resistance and thermal insulation performance. As a new type of material to replace traditional materials, It can realize the lightweight of the truck, while ensuring the strength and durability. It also can reduce costs.

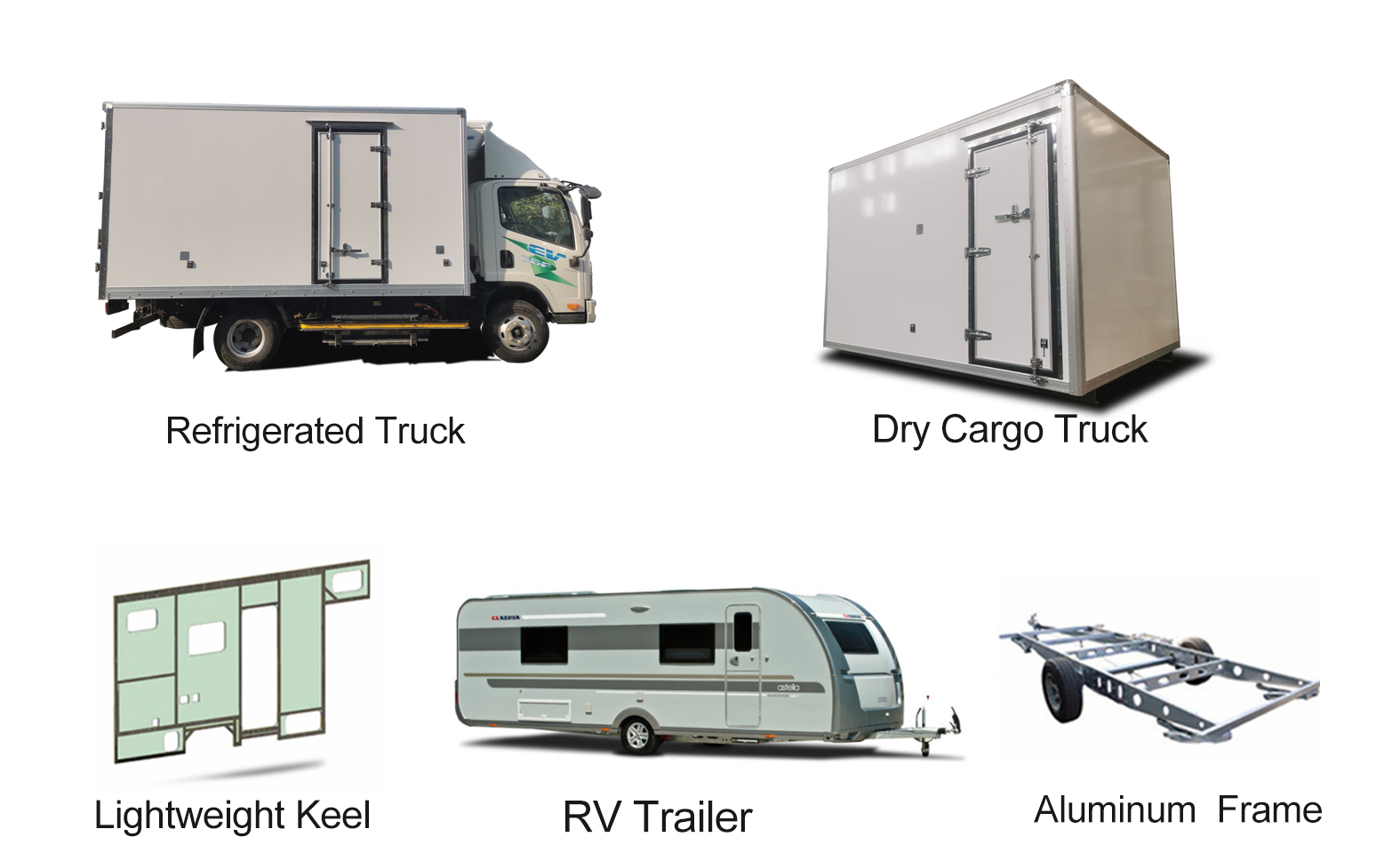

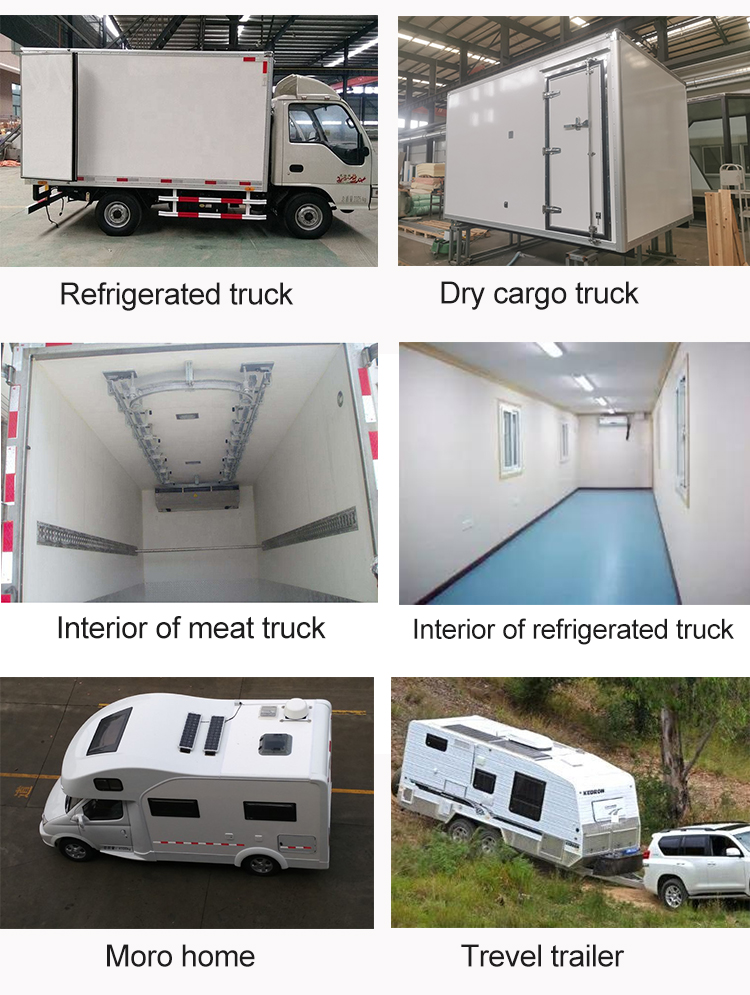

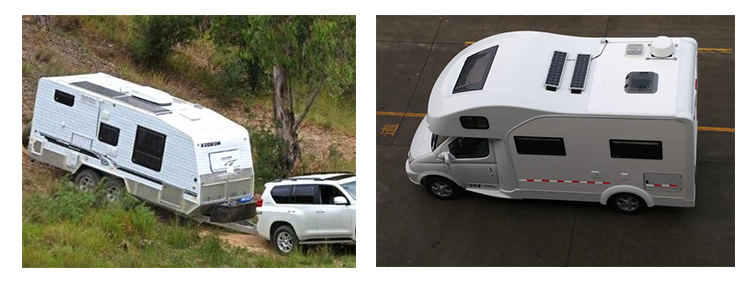

FRP composite panels Application
Mainly used in RV, Refrigerated truck, Dry cargo truck. FRP composite panels are widely used in the interior and exterior walls/floor/roof for motor homes and refrigerated truck. By combining different materials and dimensions, we can made various composite panels meet the diverse needs of customers.

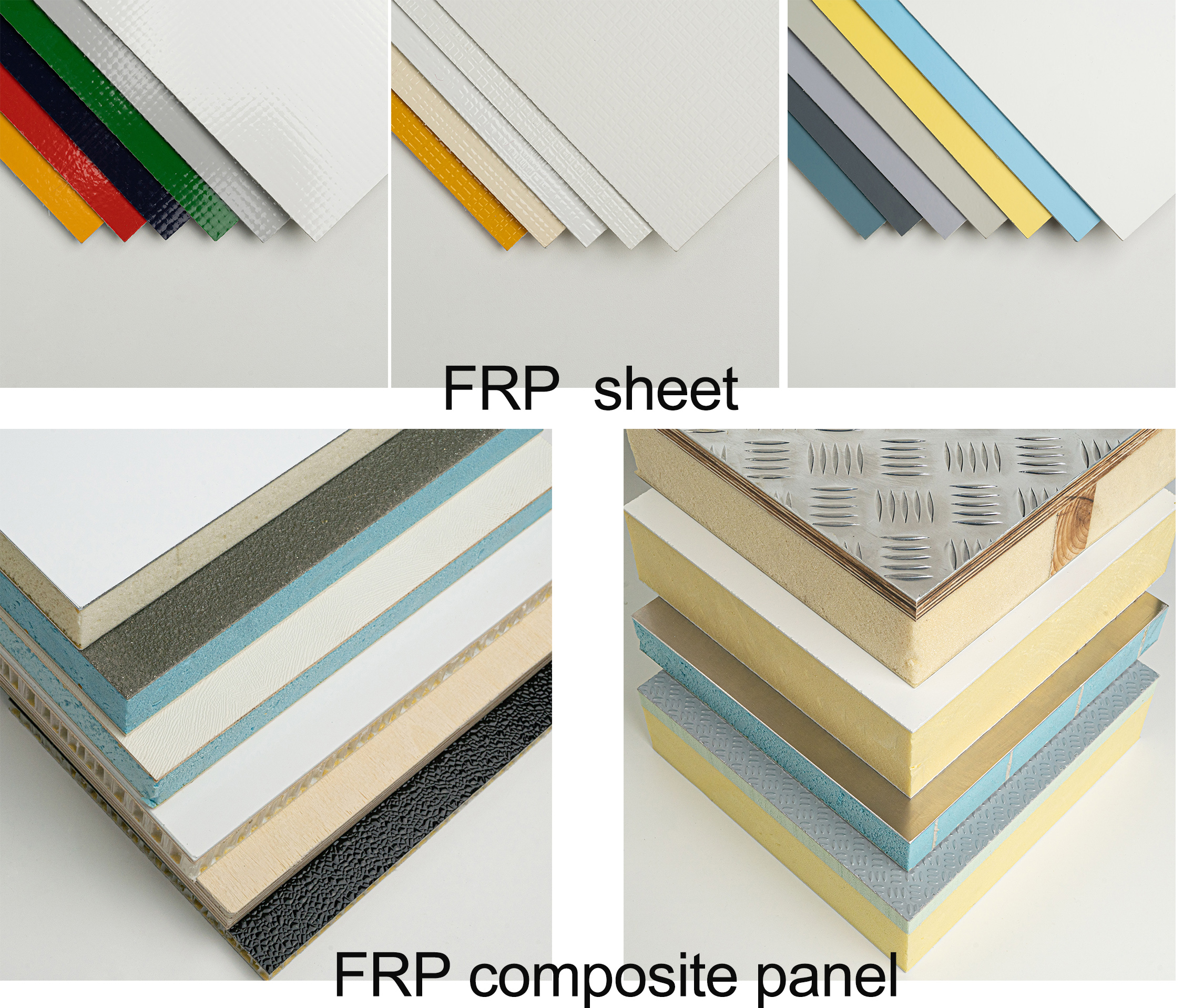

The different products and services we can offer
FRP plate in rolls or sheets
FRP Composite panels of various materials and dimensions

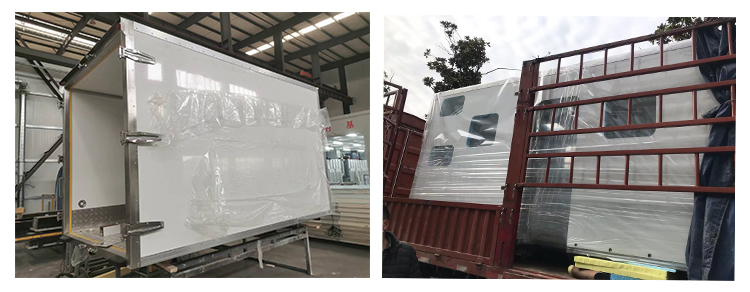

Whole truck boxes or caravan bodies

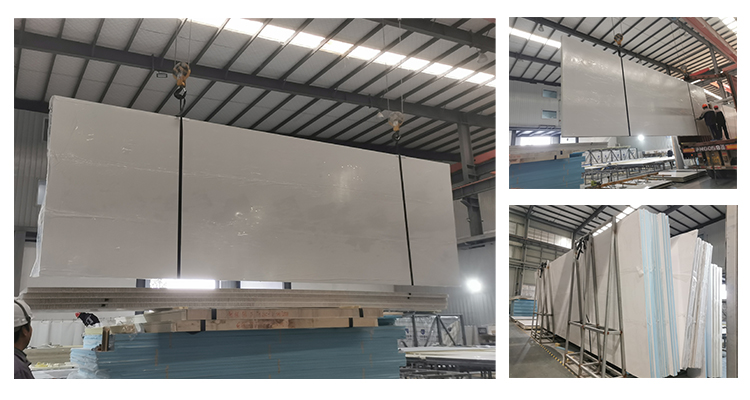

Truck body Panels and accessories in CKD form

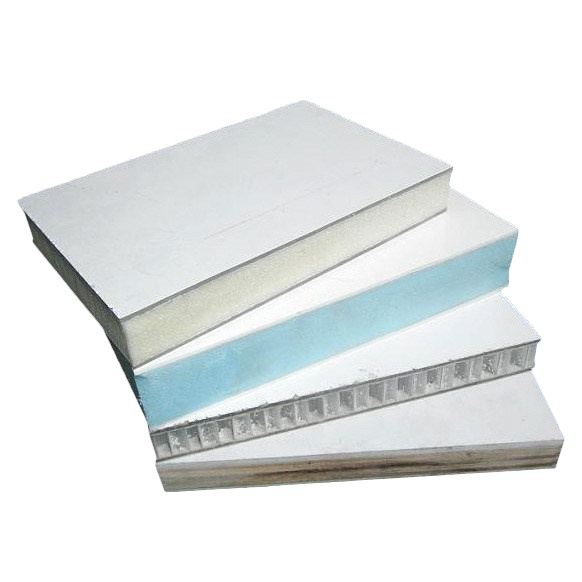

FRP Composite Panels Type

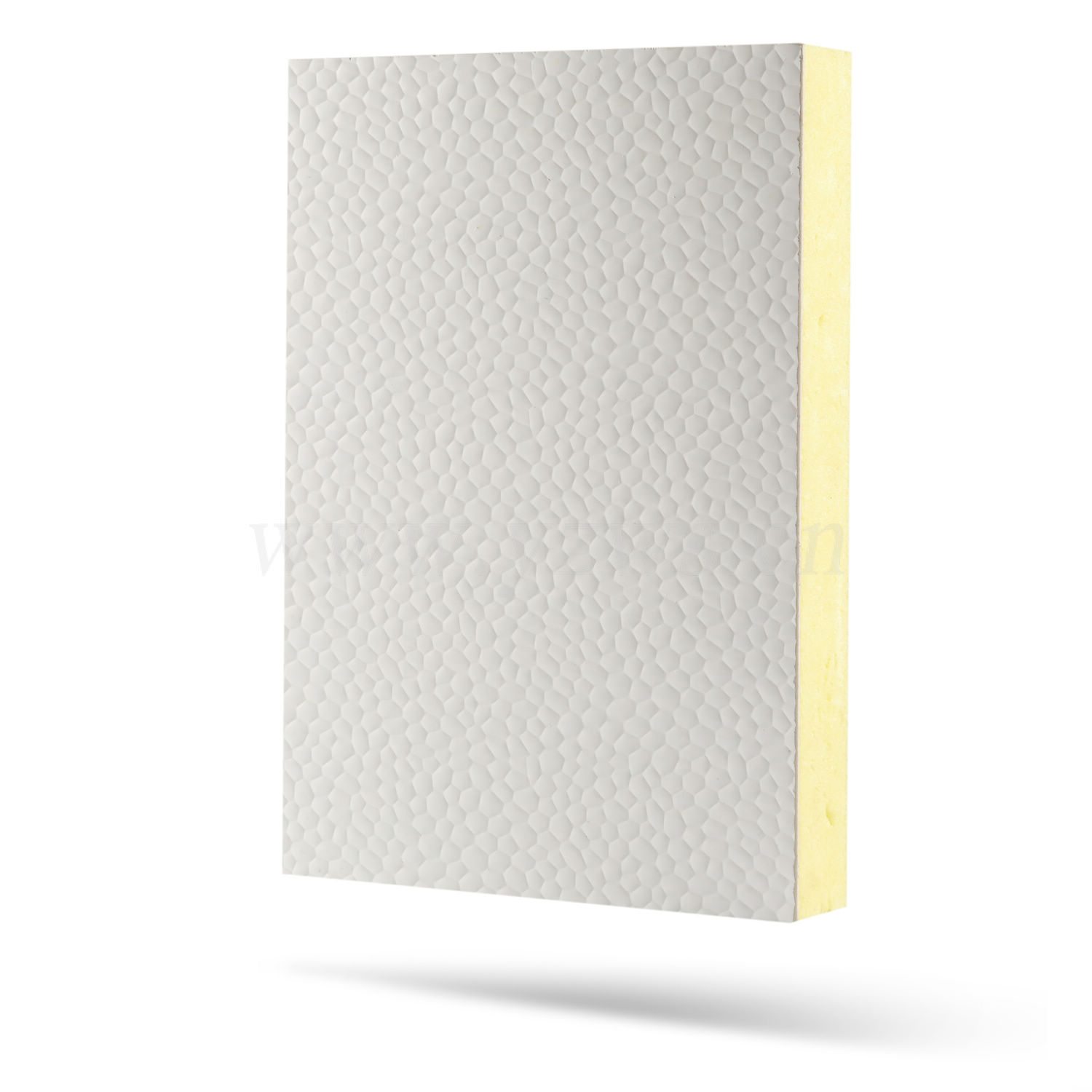

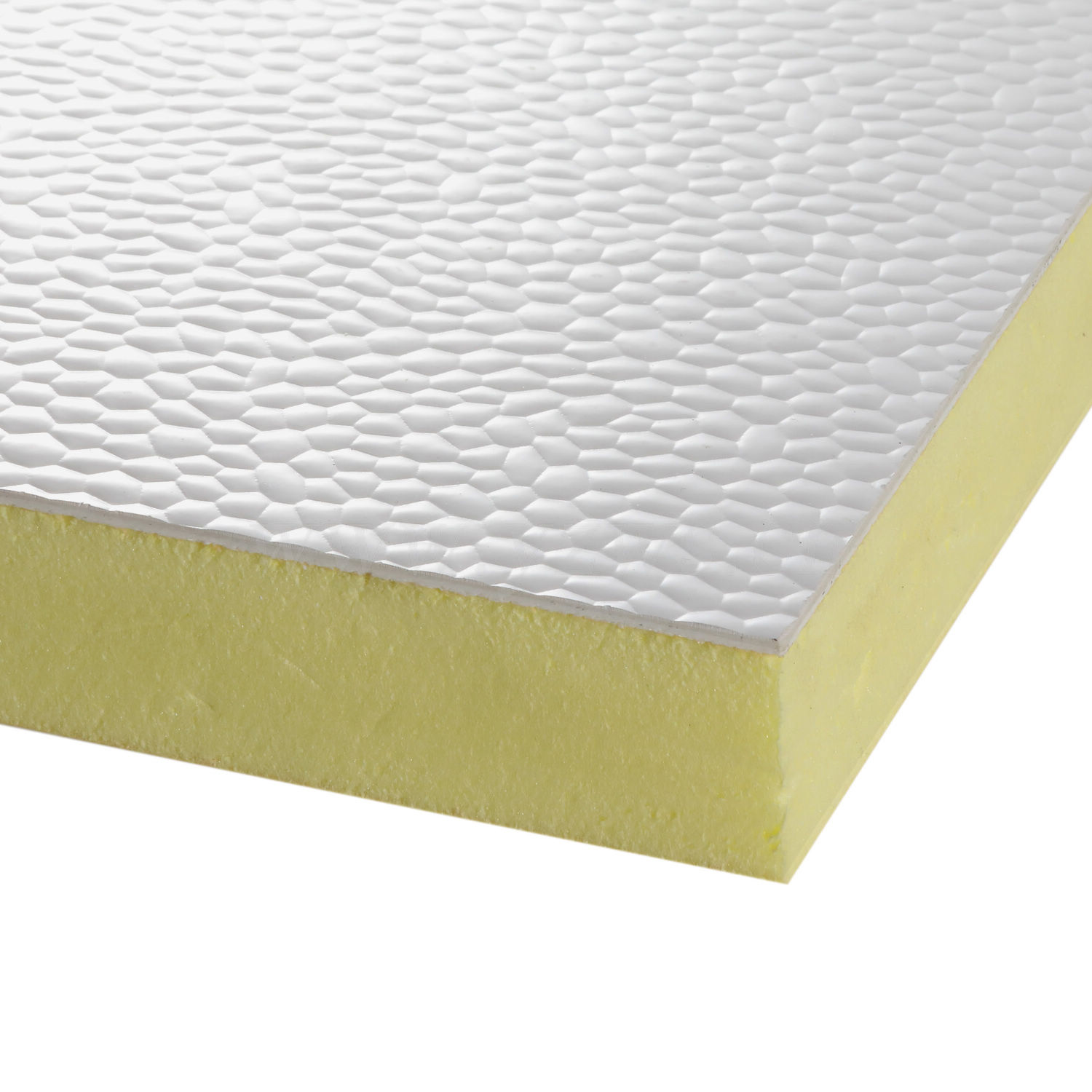

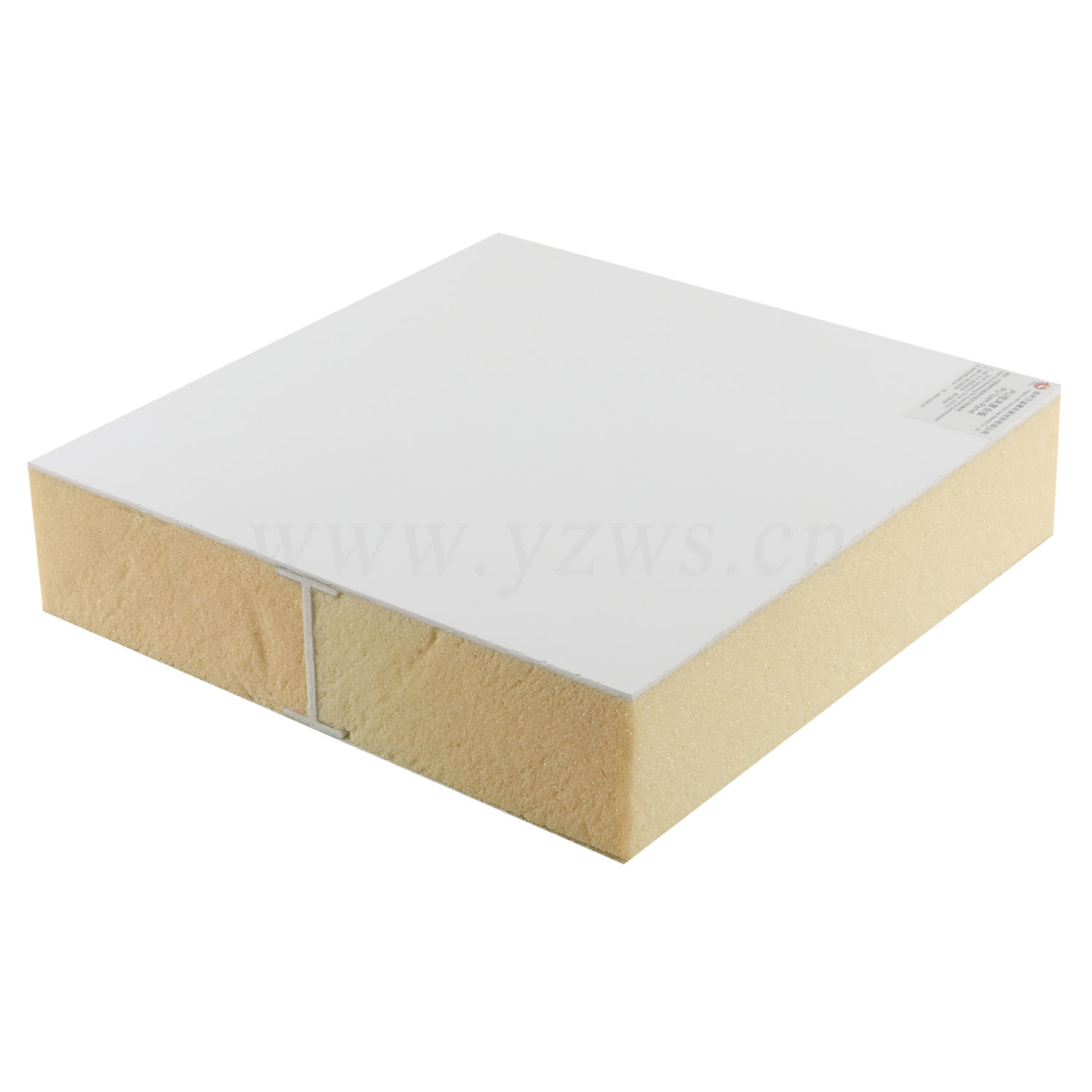

FRP PU composite panel
Parameters
Details
Core Material
PU Foam, Polyurethane Foam
FRP skin
1.0-3.0MM
Core Thickness
10-150MM
Width
Max 3200MM
Length
Max 16500MM
Color
White/colored
Thickness (mm)
Weight (kg/m²)
30 / 45 / 70 / 105 / 130
10.5 / 11 / 12.5 / 13.5 / 15
No
Main Performance Item
Test results
Test method
1
Flat compressive strength
≥0.18MPa
GB/T1453
2
Edgewise compressive strength
≥2.0MPa
GB/T1454
3
Tensile strength
≥0.85MPa
GB/T1452
4
Barcol hardness
≥42
GB/T3854
5
Thermal conductivity
≤0.025W/m.k
GB/T10295
Note: FRP I beam is used in panels for tensile strength test while no I beams in panels in compressive strength tests. Test conditions of thermal conductivity: 25°C average temperature and 15°C temperature difference.

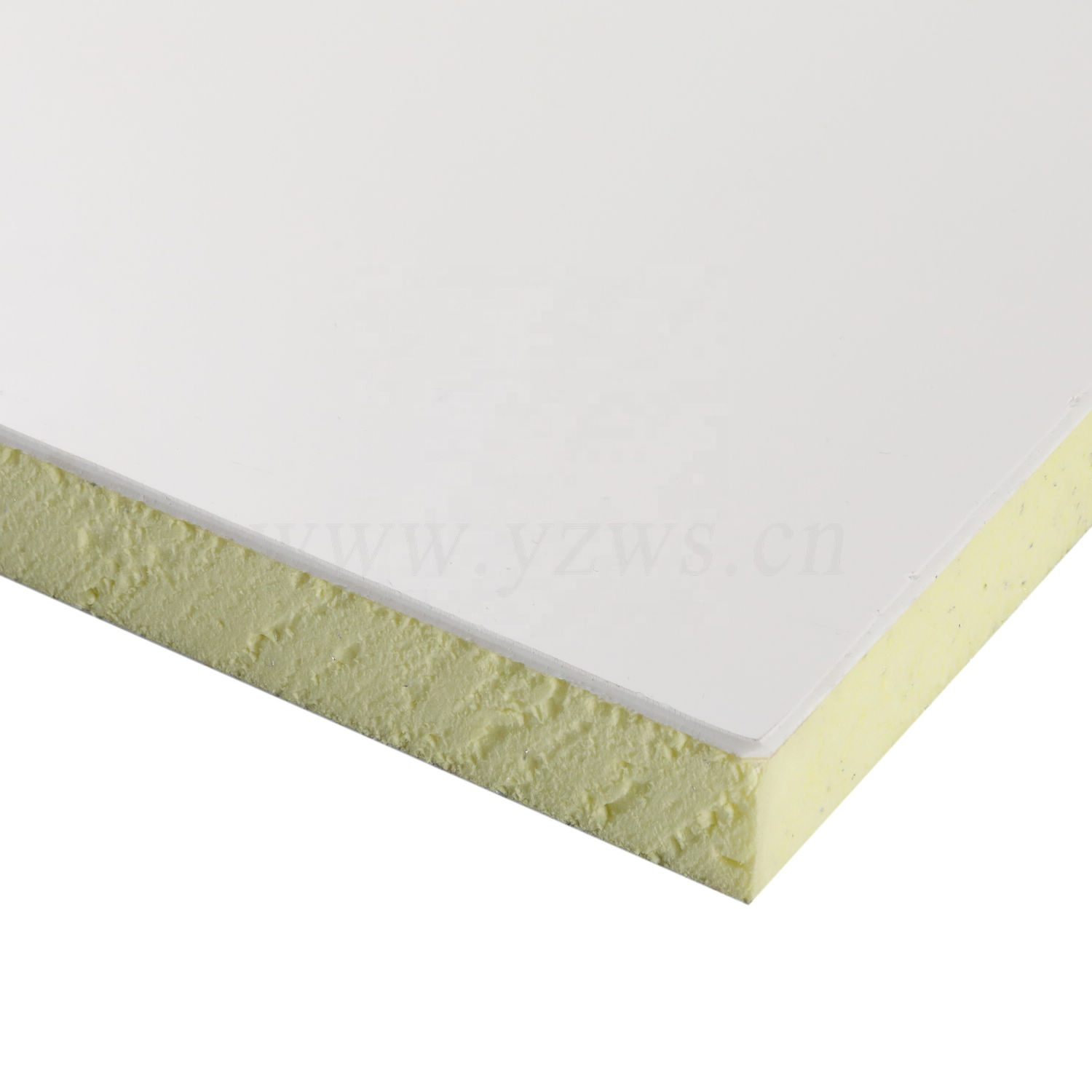

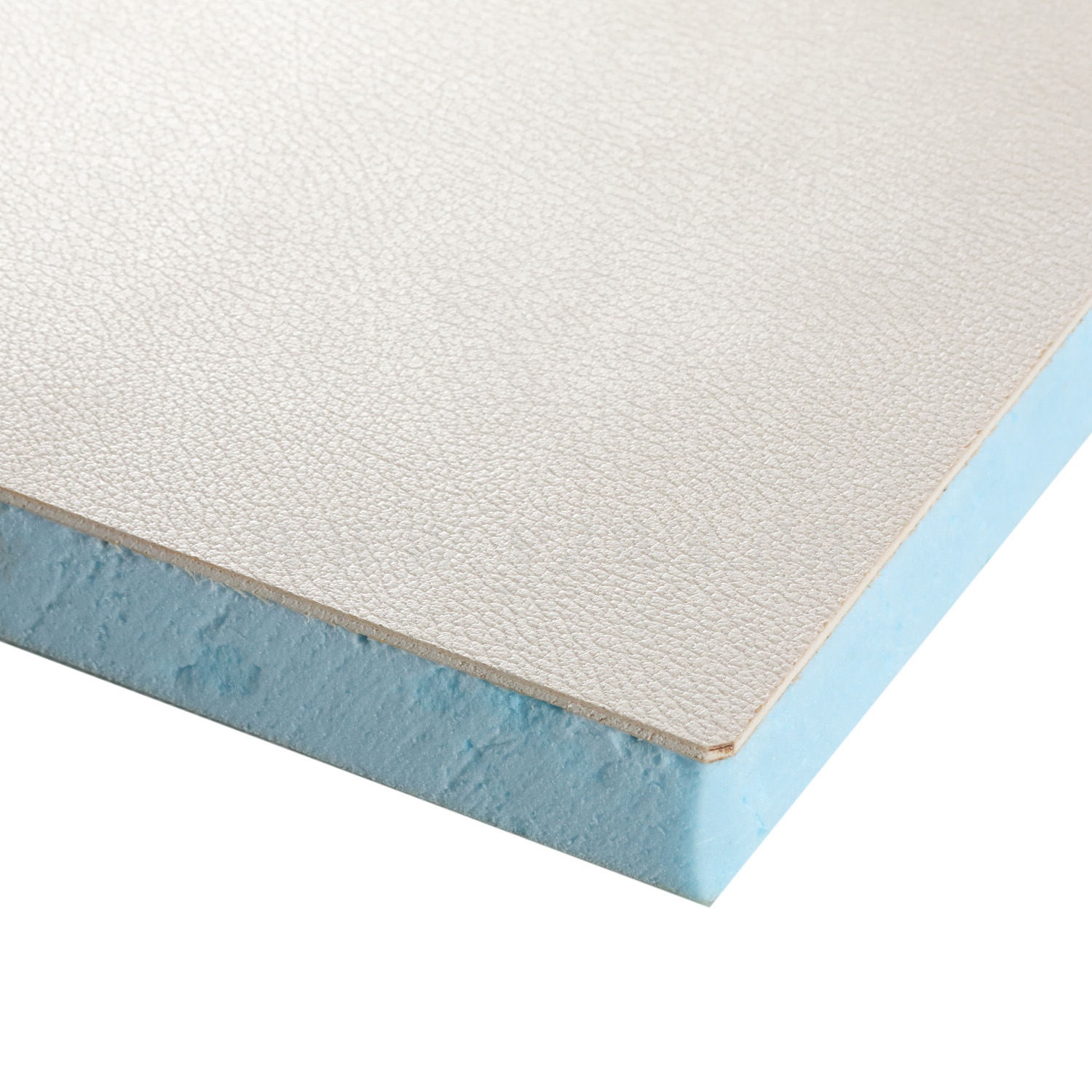

FRP XPS composite panel
Parameters
Details
Core Material
XPS foam, Extrude Polystyrene
FRP skin
1.0-3.0MM
Core Thickness
10-150MM
Width
Max 3200MM
Length
Max 16500MM
Color
White/colored
Thickness (mm)
Weight (kg/m²)
50 / 60 / 70 / 80
8.35 / 8.7 / 9.05 / 9.4
No
Main Performance Item
Test results
Test method
1
Flat compressive strength
≥0.25MPa
GB/T1453
2
Edgewise compressive strength
≥2.0MPa
GB/T1454
3
Tensile strength
≥0.75MPa
GB/T1452
4
Barcol hardness
≥42
GB/T3854
5
Thermal conductivity
≤0.03W/m.k
GB/T10295

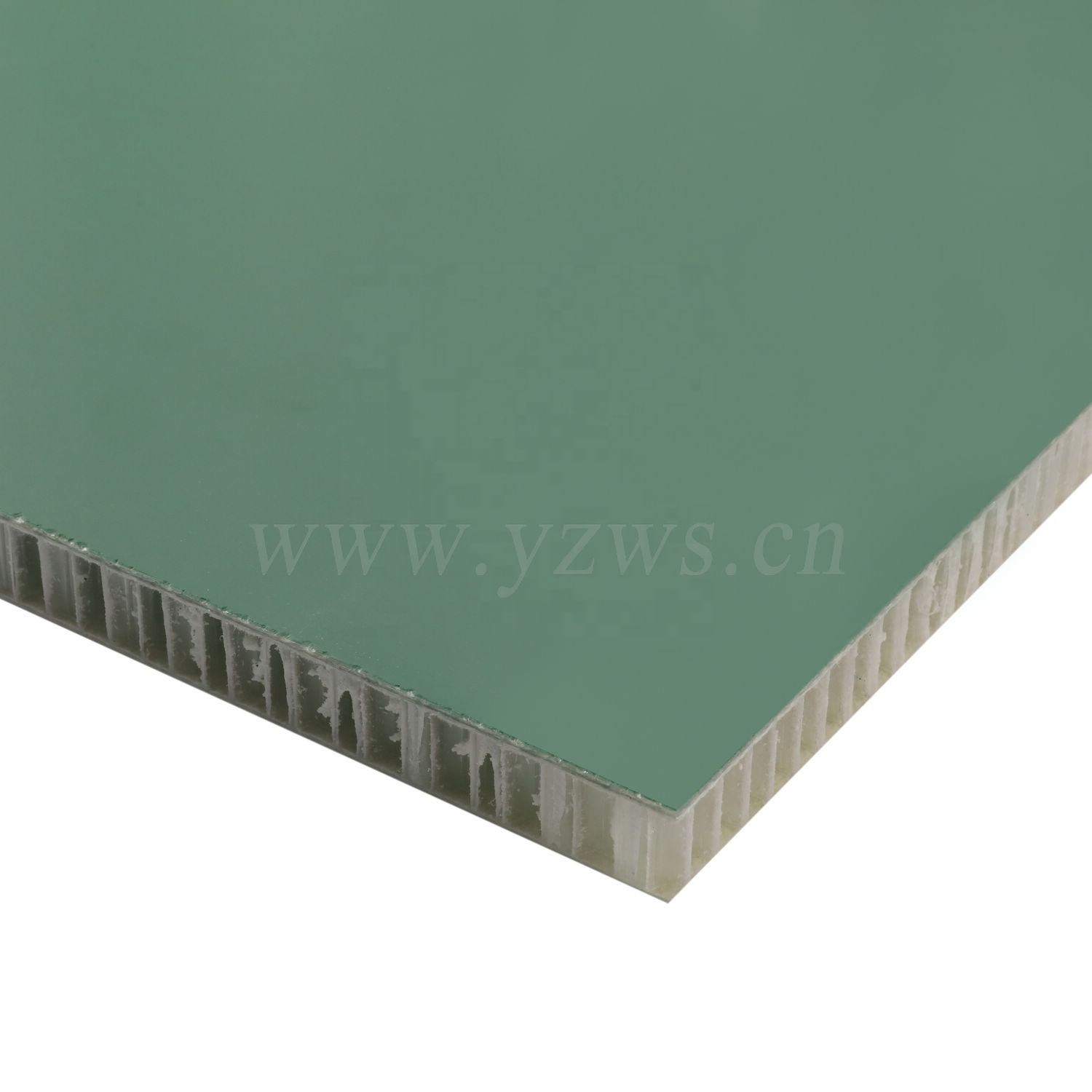

FRP PP composite panel
Parameters
Details

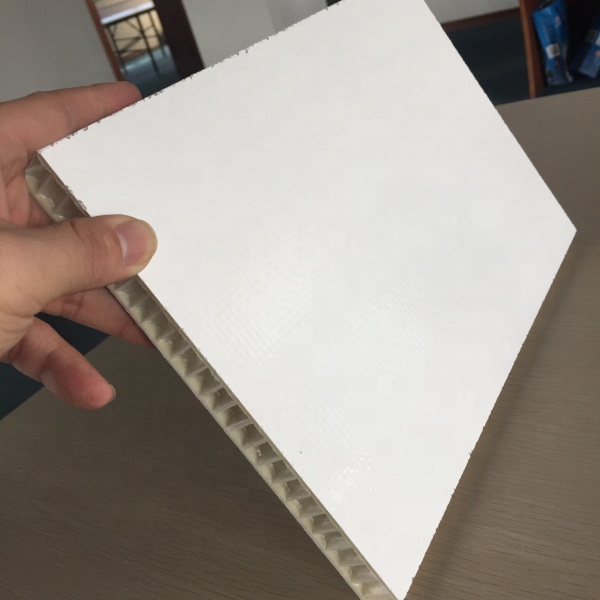

Core Material
PP Honeycomb
FRP skin
1.0-3.0MM
Core Thickness
10-100MM
Width
Max 3200MM
Length
Max 16500MM
Color
White/colored
Thickness (mm)
Weight (kg/m²)
15 / 18 / 21
7.5 / 8 / 8.5
No
Main Performance Item
Test results
Test method
1
Static strength
≥25MPa
GB/T17657
2
Elastic modulus
≥2000MPa
GB/T17657
3
Flat compressive strength
≥1.2MPa
GB/T1453
4
Edgewise compressive strength
≥10.5MPa
GB/T1454
5
Tensile strength
≥0.5MPa
GB/T1452
6
Barcol hardness
≥42
GB/T3854

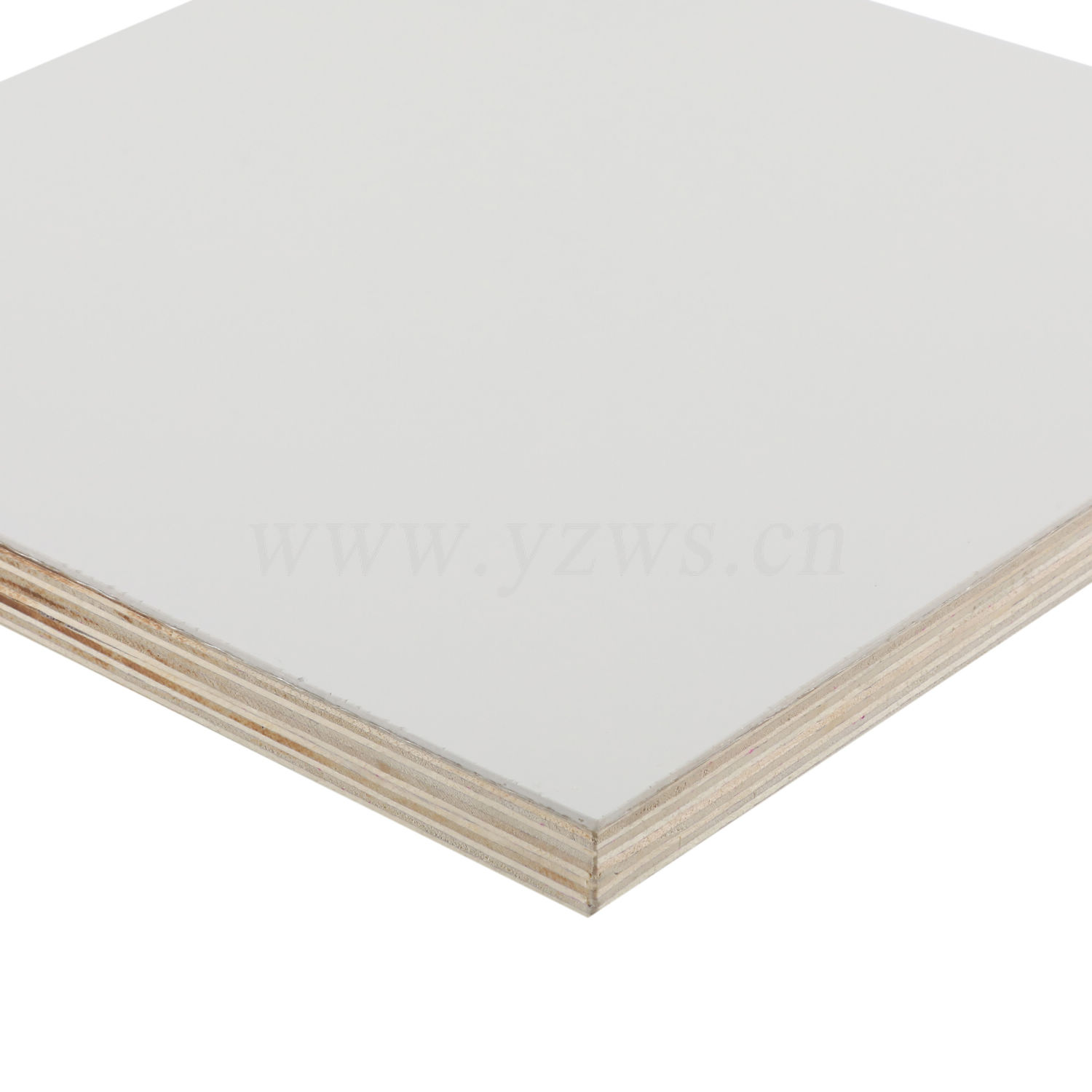

FRP Plywood composite panel
Parameters
Details
Core Material
Plywood
FRP skin
1.0-3.0MM
Core Thickness
10-100MM
Width
Max 3200MM
Length
Max 16500MM
Color
White/colored
Thickness (mm)
Weight (kg/m²)
15 / 18 / 21
12 / 14 / 16
No
Main Performance Item
Condition
Test results
Test method
1
Static strength
Along wood grain
≥60MPa
GB/T17657
Cross wood grain
≥50MPa
2
Elastic modulus
Along wood grain
≥6000MPa
Cross wood grain
≥4800MPa
3
Edgewise compressive strength
≥35MPa
GB/T1454
4
Flat tension strength
≥1.2MPa
GB/T1452
5
Barcol hardness
≥42
GB/T3854
6
Water boiling Test
No delamination in 72-hour water boiling
GB/T17567

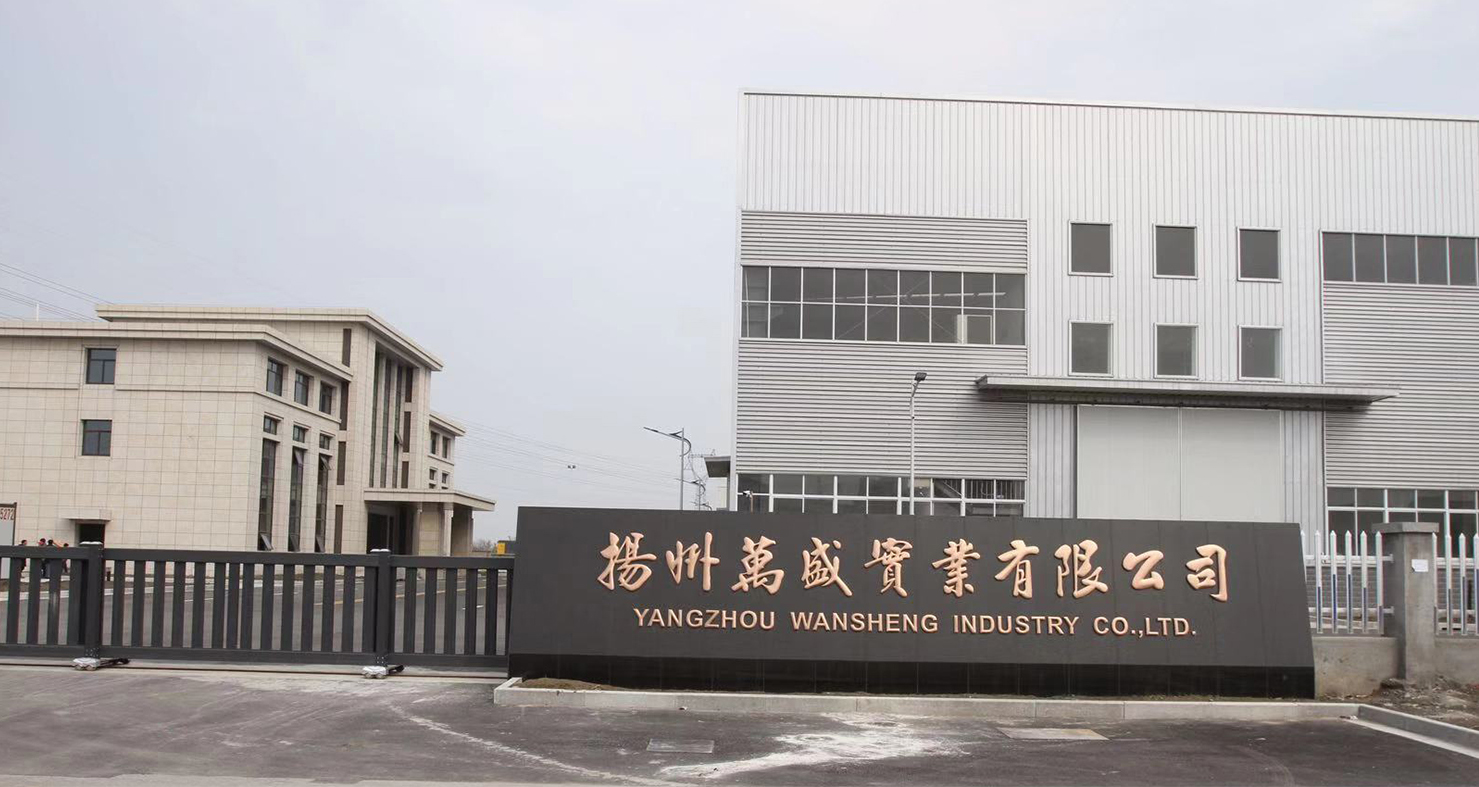

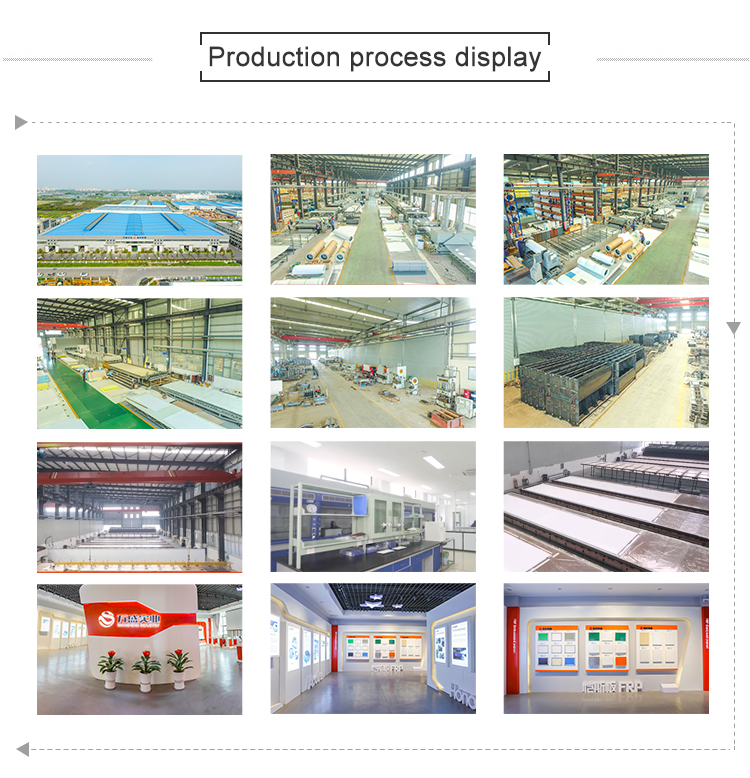

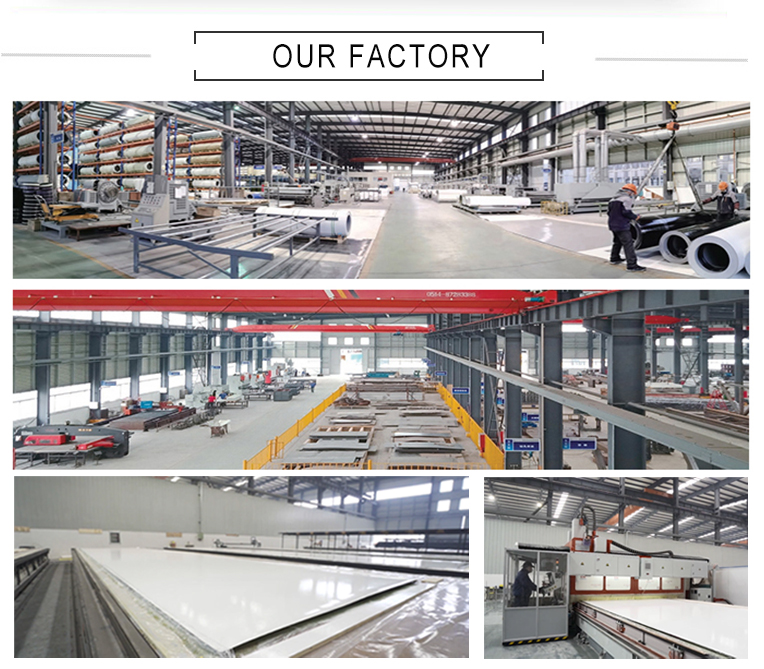

Production & Factory Gallery
Products Category

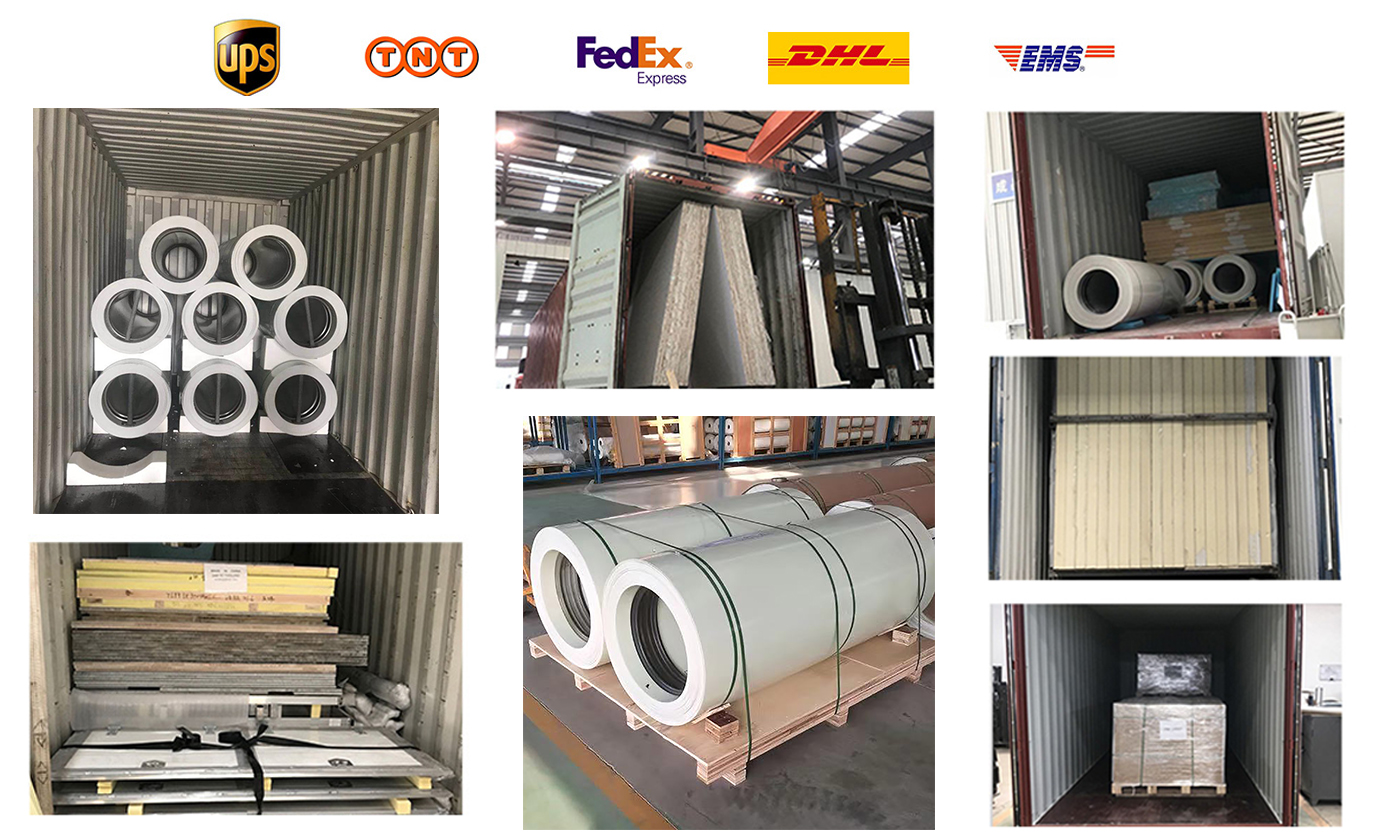

Transport & Payment
Frequently Asked Questions
Q1: What are the payment terms?
A 30% T/T as deposit, balanced before shipment arranged. We'll show you the photos of the products and packages before you pay the balance. T/T, L/C, Western Union are acceptable. Other terms can also be negotiated.
Q2: What about your delivery time? Can we receive the goods on time?
Usually around 3-5 weeks after order confirmed. It also depends on the total quantity of your order. During the production process, we will report the production progress to you at any time.
Q3: How can I get a sample from you for quality checking?
Kindly provide us your technical details, then we will offer a sample as your specification. Another way is to send your samples to us, and we will make a counter sample for you within one week.
Q4: Do you support customized products?
Yes. If you want to buy the product without a detailed idea, we could recommend you some products according to your application. If you have your own design ideas, let us know, and we will try our best to meet your needs.
Q5: How do you establish a long-term and good business relationship?
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend, and sincerely do business and make friends with them, no matter where they come from.
Q6: What are the main applications of these FRP composite panels?
FRP composite panels are widely used in the interior and exterior walls, floor, and roof of motor homes (RVs), refrigerated truck bodies, and dry cargo trucks to achieve structural lightweight while ensuring high durability and insulation performance.
